3. Distributions of Data and Quality Control Diagnostics
Belinda Cornes
2021-05-04
Last updated: 2021-05-04
Checks: 7 0
Knit directory: QTL_Analysis_Report-Pinkney/
This reproducible R Markdown analysis was created with workflowr (version 1.6.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20210504) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 1b3d712. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Ignored files:
Ignored: .DS_Store
Ignored: analysis/figure/
Unstaged changes:
Modified: analysis/_site.yml
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were made to the R Markdown (analysis/3.0_distributions_qc.Rmd) and HTML (docs/3.0_distributions_qc.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 1b3d712 | Belinda Cornes | 2021-05-04 | Updated Results |
3.1 Phenotype distribution
In total we have 225 samples, among them 120 females, 105 males. We use 6 phenotypes for QTL analysis. They are:
- average right eye axial length (
R_AVG), - average left eye axial length (
L_AVG), - average axial length for both eyes (
Both_AVG), - average right eye axial length for degeneration data (
deg_avg_r), - average left eye axial length for degeneration data (
deg_avg_l), - average axial length for both eyes for degeneration data (
deg_avg_b).

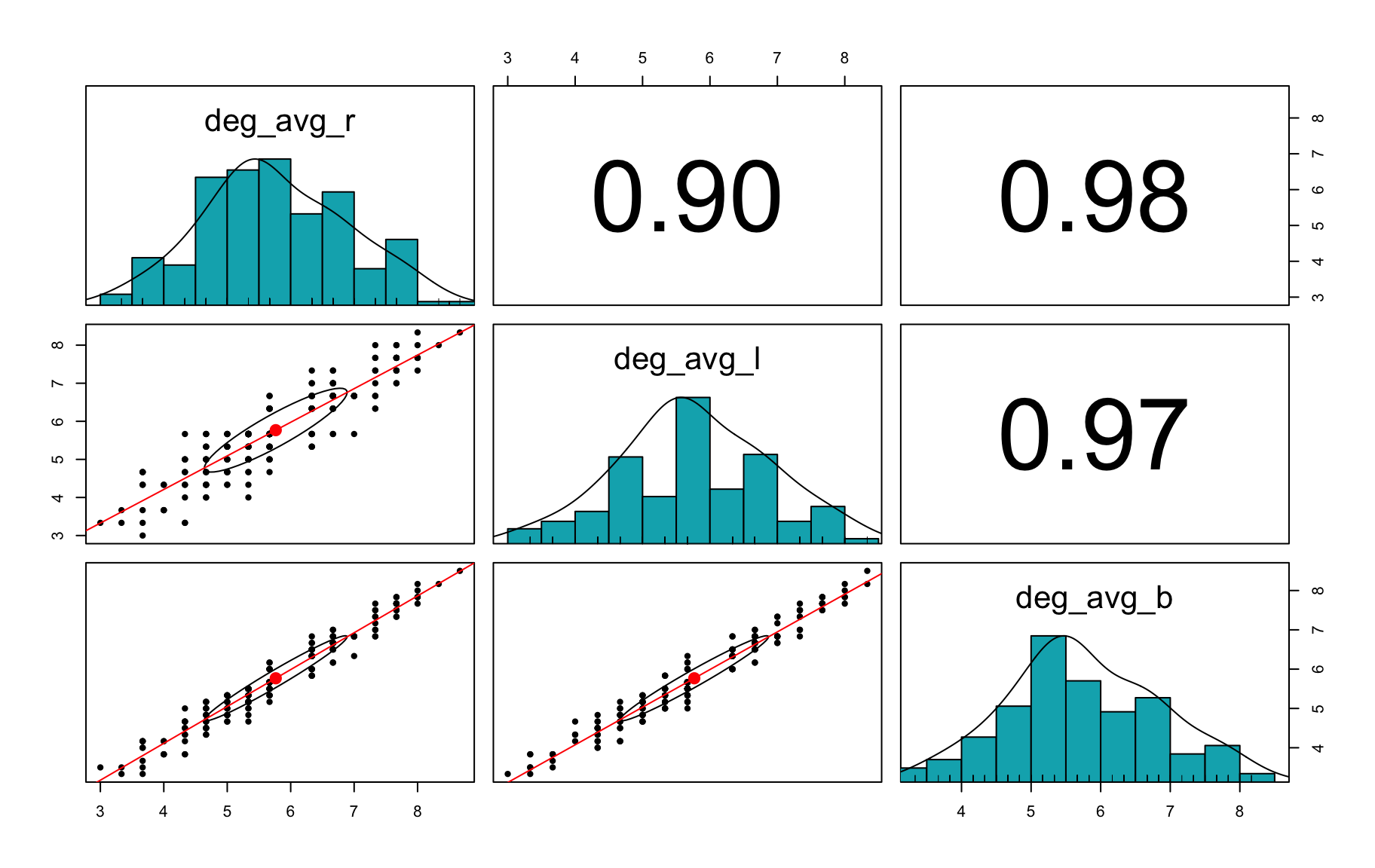

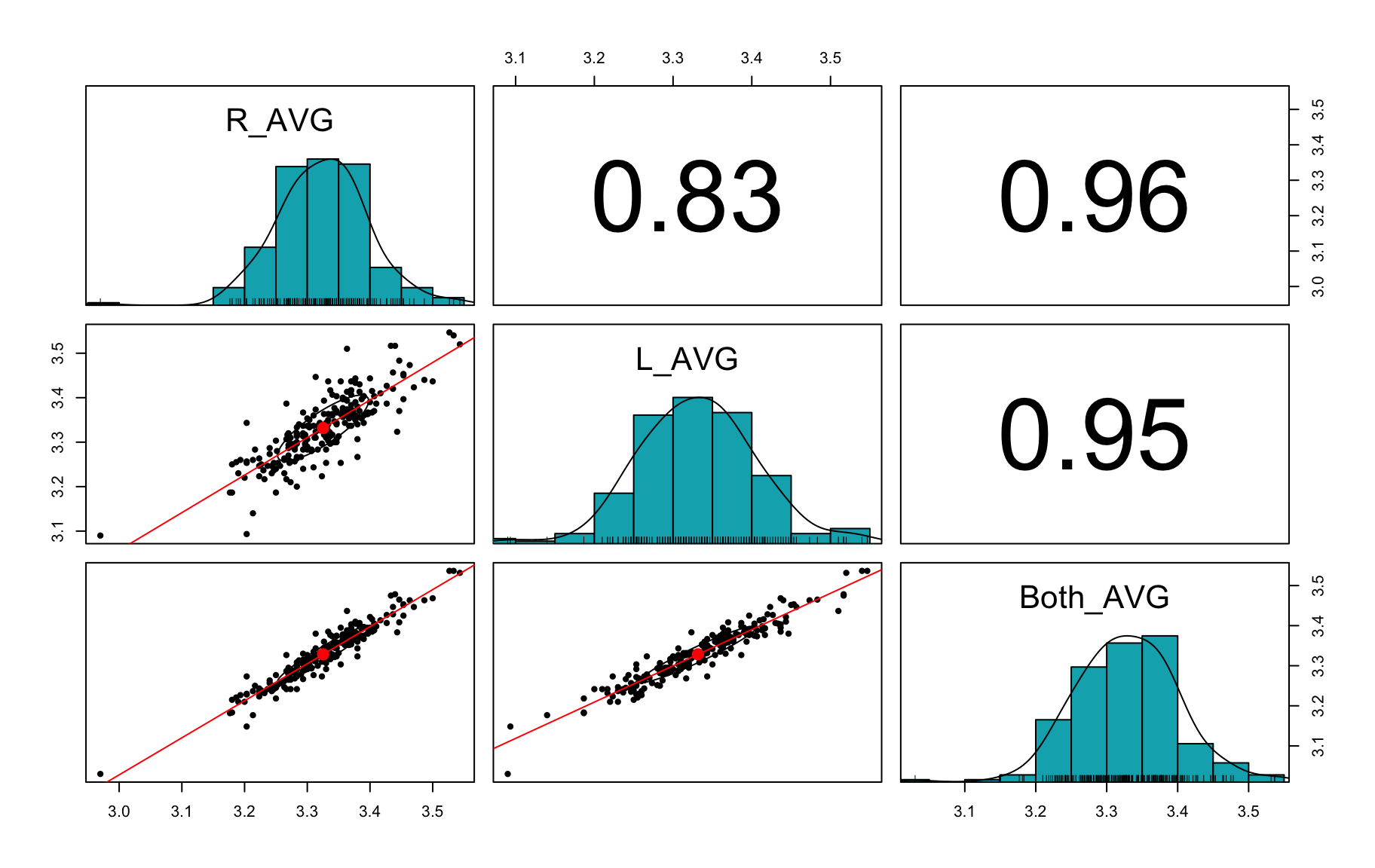

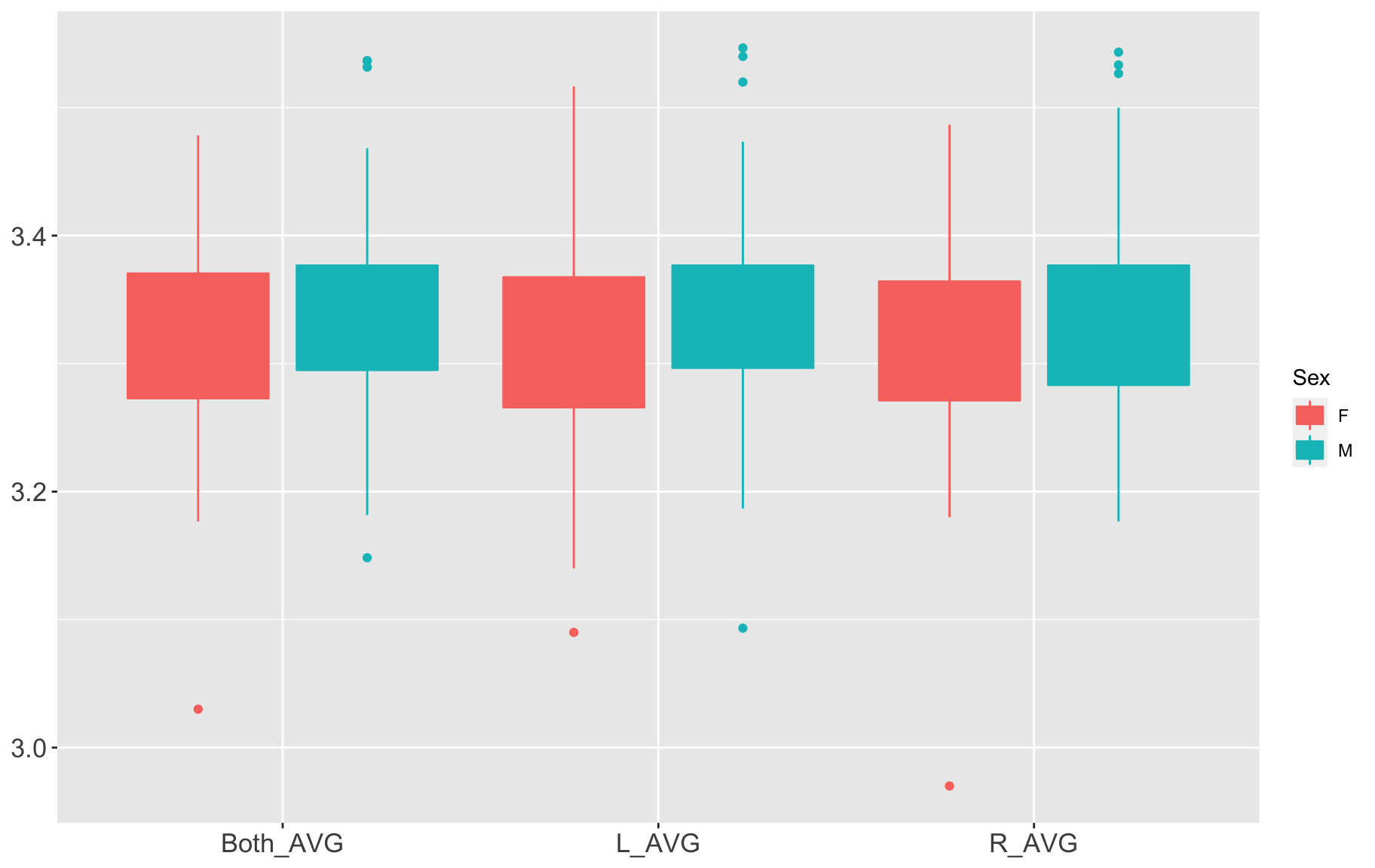

Phenotypic distributions are plotted below.
QTL analysis requires variables follow normal distribution, from the above distributions, there are no “bad” candidates for QTL analysis.
However, we removed any samples that were 3 standard deviations from the mean for a particular phenotype. These were:
| Mouse.ID | R_AVG | L_AVG | Both_AVG | deg_avg_r | deg_avg_l | deg_avg_b |
|---|---|---|---|---|---|---|
| 270 | XX | |||||
| 806 | XX | XX | XX | |||
| 895 | XX |
That is, those that have a grey square were removed for that particular phenotype in the QTL mapping.
3.2 Genotyping quality assessment

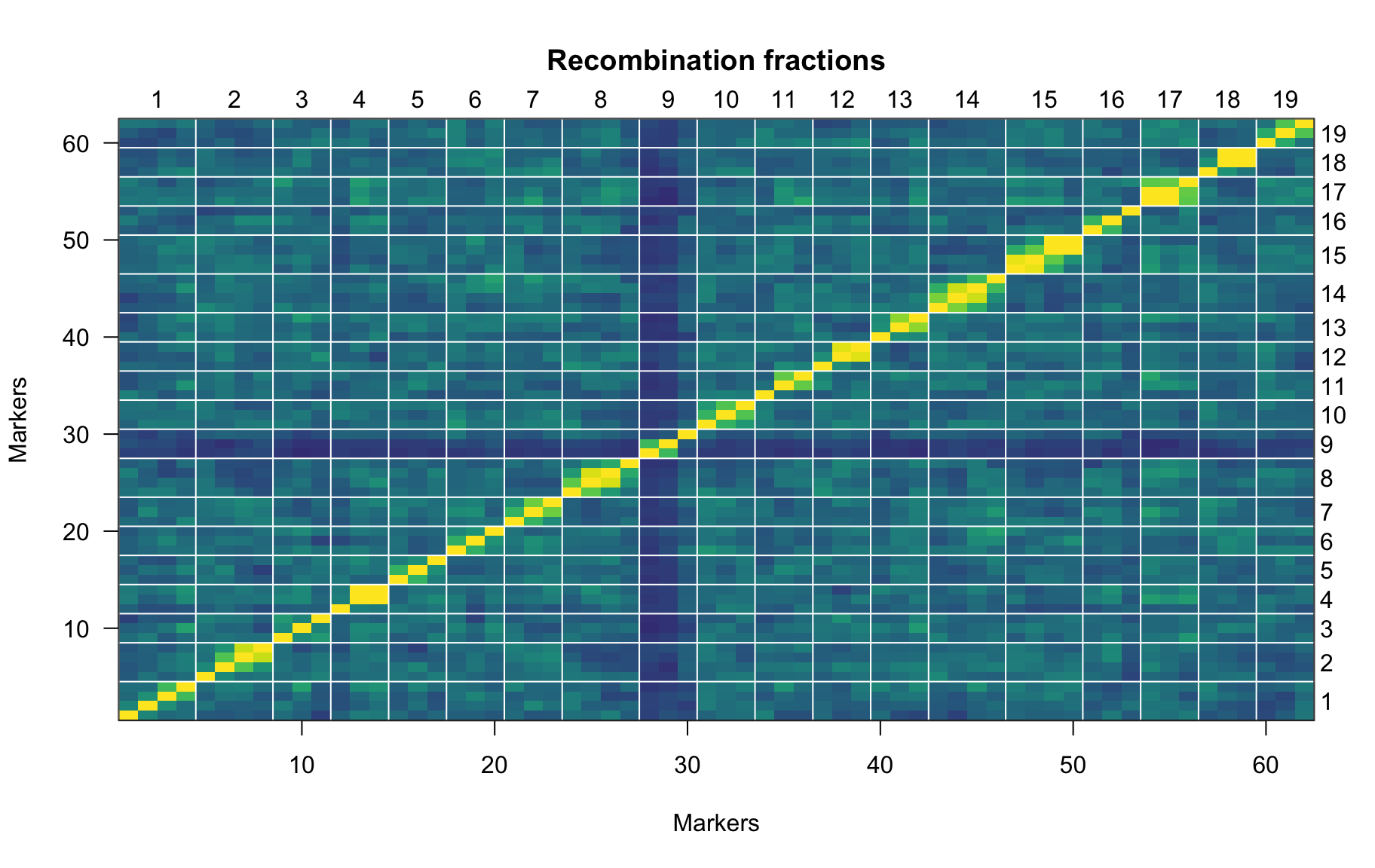

The recombination fraction (RF) plot is presented below. Markers on the same chromosome that are closer to each other are assumed to be linked (yellow color); Markers that are far away from each other on the same chromosome or markers on the different chromosomes are assumed to be independent. The patterns in Figure 2 suggests that the quality of genotyping is reasonably good.
--Read the following data:
225 individuals
62 markers
6 phenotypes
--Cross type: f2
