Advanced Machine Learning with Python (Session 2 - Part 3)

Fernando Cervantes (fernando.cervantes@jax.org)

Materials

Prepare the `cpg0016-jump` dataset

!git clone https://github.com/jump-cellpainting/JUMP-Target

!git clone https://github.com/jump-cellpainting/datasets.git

Categories: `class_names` = dict_values(['NONE/DMSO', 'CRISPR', 'ORF', 'COMPOUND'])

Training set size: 283 plates
Validation set size: 96 plates
Testing set size: 54 plates

Instantiate a TiffS3Dataset from the plates assigned for training, validation, and testing

training_ds = TiffS3Dataset(pert_plate_maps, wells_metadata, trn_plates, 16, 24, 9, 5, shuffle=True)
validation_ds = TiffS3Dataset(pert_plate_maps, wells_metadata, val_plates, 16, 24, 9, 5, shuffle=True)
testing_ds = TiffS3Dataset(pert_plate_maps, wells_metadata, tst_plates, 16, 24, 9, 5, shuffle=True)

Inspect the dataset

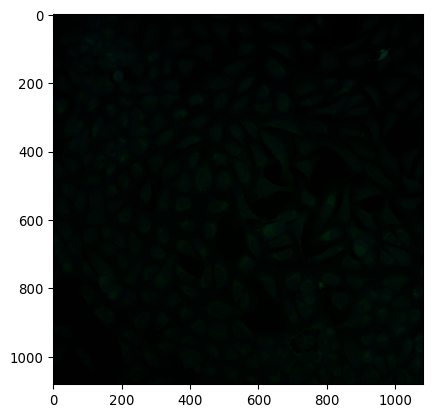

Visuzalize an image from a single field retrieved from the JUMP dataset.

import matplotlib.pyplot as plt

sample_x, sample_y, sample_metadata = next(iter(training_ds))

print(sample_metadata)

print("Sample shape", sample_x.shape)

plt.imshow(np.moveaxis(sample_x, 0, -1)[..., :3])

print("Sample target", sample_y, class_names[sample_y])

{'Plate_name': 'CP-CC9-R5-09', 'Source_name': 'source_13', 'Batch_name': '20221109_Run5', 'Plate_type': 'CRISPR', 'Plate_path': 'CP-CC9-R5-09', 'Well_position': 'O05'}
Sample shape (5, 1080, 1080)
Sample target 1 CRISPR

Inspect the dataset

Create a PyTorch DataLoader that takes a Dataset (or IterableDataset) and serves mini-batches of samples.

The DataLoader also manages the mini-batch collation and multi-thread loading of data for us.

from torch.utils.data.dataloader import DataLoader
batch_size = 10

training_dl = DataLoader(training_ds, batch_size=batch_size, num_workers=2, worker_init_fn=dataset_worker_init_fn)
validation_dl = DataLoader(validation_ds, batch_size=batch_size, num_workers=2, worker_init_fn=dataset_worker_init_fn)
testing_dl = DataLoader(testing_ds, batch_size=batch_size, num_workers=2, worker_init_fn=dataset_worker_init_fn)

Inspect the dataset

Visuzalize a batch of images retrieved from the JUMP dataset.

batch_x, batch_y, batch_metadata = next(iter(training_dl))

print("Batch inputs", batch_x.shape)
print("Batch targets", batch_y.shape)
pd.DataFrame(batch_metadata)

Batch inputs torch.Size([10, 5, 1080, 1080])
Batch targets torch.Size([10])

	Plate_name	Source_name	Batch_name	Plate_type	Plate_path	Well_position
0	CP-CC9-R1-13	source_13	20220914_Run1	CRISPR	CP-CC9-R1-13	J18
1	BR00126707	source_4	2021_08_23_Batch12	ORF	BR00126707__2021-09-01T05_20_25-Measurement1	E10
2	BR00121555	source_4	2021_05_31_Batch2	ORF	BR00121555__2021-05-10T11_44_39-Measurement1	A03
3	CP-CC9-R4-27	source_13	20221024_Run4	CRISPR	CP-CC9-R4-27	I19
4	BR00126400	source_4	2021_08_02_Batch10	ORF	BR00126400__2021-09-08T12_41_55-Measurement3	H11
5	BR00125621	source_4	2021_07_12_Batch8	ORF	BR00125621__2021-07-17T23_43_22-Measurement1	J01
6	CP-CC9-R2-07	source_13	20221009_Run2	CRISPR	CP-CC9-R2-07	P08
7	BR00125621	source_4	2021_07_12_Batch8	ORF	BR00125621__2021-07-17T23_43_22-Measurement1	K05
8	BR00123518	source_4	2021_05_17_Batch4	ORF	BR00123518__2021-05-23T01_57_04-Measurement1	I17
9	CP-CC9-R3-27	source_13	20221017_Run3	CRISPR	CP-CC9-R3-27	C08

Train a perturbation classifier model

Method

Note

This approach will use a Multilayer Perceptron (MLP) model to classify the field-level morphological profiles into three categories: NONE/DMSO = 0, CRISPR = 1, and ORF = 2.

The model will be fitted using Adam optimizer, which objective is to reduce the Cross Entropy loss between the predicted and the ground-truth category of each field.

Use a pre-trained model to compute field-level morphological profiles from perturbation plates

Note

We’ll start with a pre-trained MobileNet model for feature extraction since it is lightweight and fast.

In the literature, more complex models are used, such as Inception V3, DenseNet, or even Vision Transformers. However, these models require GPU acceleration to be efficiently applied.

Load a pre-trained MobileNet from the torchvision package

import torch
from torchvision.models import mobilenet_v3_small, MobileNet_V3_Small_Weights

weights = MobileNet_V3_Small_Weights.DEFAULT
model = mobilenet_v3_small(weights=weights)

Use a pre-trained model to compute field-level morphological profiles from perturbation plates

Modify the MobileNet architecture to convert it into a feature extraction function. For that, replace the original classifier layer with an Identity layer.

model.classifier = torch.nn.Identity()

Set the model into evaluation mode. (Optional) Move the model to the GPU if available

torch.cuda.is_available()

if torch.cuda.is_available():
    model.cuda()

model.eval()

MobileNetV3(
  (features): Sequential(
    (0): Conv2dNormActivation(
      (0): Conv2d(3, 16, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
      (1): BatchNorm2d(16, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
      (2): Hardswish()
    )
    (1): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(16, 16, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), groups=16, bias=False)
          (1): BatchNorm2d(16, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): ReLU(inplace=True)
        )
        (1): SqueezeExcitation(
          (avgpool): AdaptiveAvgPool2d(output_size=1)
          (fc1): Conv2d(16, 8, kernel_size=(1, 1), stride=(1, 1))
          (fc2): Conv2d(8, 16, kernel_size=(1, 1), stride=(1, 1))
          (activation): ReLU()
          (scale_activation): Hardsigmoid()
        )
        (2): Conv2dNormActivation(
          (0): Conv2d(16, 16, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(16, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (2): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(16, 72, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(72, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): ReLU(inplace=True)
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(72, 72, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), groups=72, bias=False)
          (1): BatchNorm2d(72, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): ReLU(inplace=True)
        )
        (2): Conv2dNormActivation(
          (0): Conv2d(72, 24, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(24, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (3): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(24, 88, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(88, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): ReLU(inplace=True)
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(88, 88, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), groups=88, bias=False)
          (1): BatchNorm2d(88, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): ReLU(inplace=True)
        )
        (2): Conv2dNormActivation(
          (0): Conv2d(88, 24, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(24, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (4): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(24, 96, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(96, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(96, 96, kernel_size=(5, 5), stride=(2, 2), padding=(2, 2), groups=96, bias=False)
          (1): BatchNorm2d(96, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (2): SqueezeExcitation(
          (avgpool): AdaptiveAvgPool2d(output_size=1)
          (fc1): Conv2d(96, 24, kernel_size=(1, 1), stride=(1, 1))
          (fc2): Conv2d(24, 96, kernel_size=(1, 1), stride=(1, 1))
          (activation): ReLU()
          (scale_activation): Hardsigmoid()
        )
        (3): Conv2dNormActivation(
          (0): Conv2d(96, 40, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(40, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (5): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(40, 240, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(240, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(240, 240, kernel_size=(5, 5), stride=(1, 1), padding=(2, 2), groups=240, bias=False)
          (1): BatchNorm2d(240, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (2): SqueezeExcitation(
          (avgpool): AdaptiveAvgPool2d(output_size=1)
          (fc1): Conv2d(240, 64, kernel_size=(1, 1), stride=(1, 1))
          (fc2): Conv2d(64, 240, kernel_size=(1, 1), stride=(1, 1))
          (activation): ReLU()
          (scale_activation): Hardsigmoid()
        )
        (3): Conv2dNormActivation(
          (0): Conv2d(240, 40, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(40, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (6): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(40, 240, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(240, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(240, 240, kernel_size=(5, 5), stride=(1, 1), padding=(2, 2), groups=240, bias=False)
          (1): BatchNorm2d(240, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (2): SqueezeExcitation(
          (avgpool): AdaptiveAvgPool2d(output_size=1)
          (fc1): Conv2d(240, 64, kernel_size=(1, 1), stride=(1, 1))
          (fc2): Conv2d(64, 240, kernel_size=(1, 1), stride=(1, 1))
          (activation): ReLU()
          (scale_activation): Hardsigmoid()
        )
        (3): Conv2dNormActivation(
          (0): Conv2d(240, 40, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(40, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (7): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(40, 120, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(120, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(120, 120, kernel_size=(5, 5), stride=(1, 1), padding=(2, 2), groups=120, bias=False)
          (1): BatchNorm2d(120, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (2): SqueezeExcitation(
          (avgpool): AdaptiveAvgPool2d(output_size=1)
          (fc1): Conv2d(120, 32, kernel_size=(1, 1), stride=(1, 1))
          (fc2): Conv2d(32, 120, kernel_size=(1, 1), stride=(1, 1))
          (activation): ReLU()
          (scale_activation): Hardsigmoid()
        )
        (3): Conv2dNormActivation(
          (0): Conv2d(120, 48, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(48, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (8): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(48, 144, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(144, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(144, 144, kernel_size=(5, 5), stride=(1, 1), padding=(2, 2), groups=144, bias=False)
          (1): BatchNorm2d(144, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (2): SqueezeExcitation(
          (avgpool): AdaptiveAvgPool2d(output_size=1)
          (fc1): Conv2d(144, 40, kernel_size=(1, 1), stride=(1, 1))
          (fc2): Conv2d(40, 144, kernel_size=(1, 1), stride=(1, 1))
          (activation): ReLU()
          (scale_activation): Hardsigmoid()
        )
        (3): Conv2dNormActivation(
          (0): Conv2d(144, 48, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(48, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (9): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(48, 288, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(288, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(288, 288, kernel_size=(5, 5), stride=(2, 2), padding=(2, 2), groups=288, bias=False)
          (1): BatchNorm2d(288, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (2): SqueezeExcitation(
          (avgpool): AdaptiveAvgPool2d(output_size=1)
          (fc1): Conv2d(288, 72, kernel_size=(1, 1), stride=(1, 1))
          (fc2): Conv2d(72, 288, kernel_size=(1, 1), stride=(1, 1))
          (activation): ReLU()
          (scale_activation): Hardsigmoid()
        )
        (3): Conv2dNormActivation(
          (0): Conv2d(288, 96, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(96, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (10): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(96, 576, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(576, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(576, 576, kernel_size=(5, 5), stride=(1, 1), padding=(2, 2), groups=576, bias=False)
          (1): BatchNorm2d(576, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (2): SqueezeExcitation(
          (avgpool): AdaptiveAvgPool2d(output_size=1)
          (fc1): Conv2d(576, 144, kernel_size=(1, 1), stride=(1, 1))
          (fc2): Conv2d(144, 576, kernel_size=(1, 1), stride=(1, 1))
          (activation): ReLU()
          (scale_activation): Hardsigmoid()
        )
        (3): Conv2dNormActivation(
          (0): Conv2d(576, 96, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(96, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (11): InvertedResidual(
      (block): Sequential(
        (0): Conv2dNormActivation(
          (0): Conv2d(96, 576, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(576, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (1): Conv2dNormActivation(
          (0): Conv2d(576, 576, kernel_size=(5, 5), stride=(1, 1), padding=(2, 2), groups=576, bias=False)
          (1): BatchNorm2d(576, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
          (2): Hardswish()
        )
        (2): SqueezeExcitation(
          (avgpool): AdaptiveAvgPool2d(output_size=1)
          (fc1): Conv2d(576, 144, kernel_size=(1, 1), stride=(1, 1))
          (fc2): Conv2d(144, 576, kernel_size=(1, 1), stride=(1, 1))
          (activation): ReLU()
          (scale_activation): Hardsigmoid()
        )
        (3): Conv2dNormActivation(
          (0): Conv2d(576, 96, kernel_size=(1, 1), stride=(1, 1), bias=False)
          (1): BatchNorm2d(96, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
        )
      )
    )
    (12): Conv2dNormActivation(
      (0): Conv2d(96, 576, kernel_size=(1, 1), stride=(1, 1), bias=False)
      (1): BatchNorm2d(576, eps=0.001, momentum=0.01, affine=True, track_running_stats=True)
      (2): Hardswish()
    )
  )
  (avgpool): AdaptiveAvgPool2d(output_size=1)
  (classifier): Identity()
)

Use a pre-trained model to compute field-level morphological profiles from perturbation plates

Get the original transforms pipeline used when the model was originally trained

model_transforms = weights.transforms()
model_transforms

ImageClassification(
    crop_size=[224]
    resize_size=[256]
    mean=[0.485, 0.456, 0.406]
    std=[0.229, 0.224, 0.225]
    interpolation=InterpolationMode.BILINEAR
)

Test the feature extraction model.

Note

Apply the model to each channel by separate.

b, c, h, w = batch_x.shape

x_t = model_transforms(torch.tile(batch_x.reshape(-1, 1, h, w), (1, 3, 1, 1)))

if torch.cuda.is_available():
    x_t = x_t.cuda()

with torch.no_grad():
    x_out = model(x_t).cpu()

Aggregate the features per channel into a single vector per sample.

x_out = x_out.reshape(b, c, -1)

fx = x_out.sum(dim=1)

fx.shape

torch.Size([10, 576])

Use a pre-trained model to compute field-level morphological profiles from perturbation plates

Tidy up the feature extraction operation

def feature_extractor(batch_x):
    b, c, h, w = batch_x.shape

    x_t = model_transforms(torch.tile(batch_x.reshape(-1, 1, h, w), (1, 3, 1, 1)))

    with torch.no_grad():
        x_out = model(x_t)

    fx = x_out.reshape(b, c, -1).sum(dim=1)

    return fx

if torch.cuda.is_available():
    batch_x = batch_x.cuda()

fx = feature_extractor(batch_x)

fx = fx.cpu()

fx.shape

torch.Size([10, 576])

Create a classifier with a Multilayer Perceptron (MLP) architecture

Note

The MobileNet model extracts \(576\) features per image, these will be the input features for the MLP classifer.

Define a Multilayer Perceptron MLP classifier that takes the pre-extracted features and predicts the perturbation applied to that sample.

class PerturbationClassifier(torch.nn.Module):
    def __init__(self, num_features, num_hidden_features, num_classes):
        super(PerturbationClassifier, self).__init__()

        self._classifier = torch.nn.Sequential(
            torch.nn.BatchNorm1d(num_features=num_features),
            torch.nn.Linear(in_features=num_features, out_features=num_hidden_features, bias=True),
            torch.nn.Dropout(0.1),
            torch.nn.ReLU(),
            torch.nn.Linear(in_features=num_hidden_features, out_features=num_classes, bias=False)
        )

    def forward(self, input):
        y_pred = self._classifier(input)
        return y_pred

classifier = PerturbationClassifier(576, 128, 3)

(Optional) If a GPU is available, move the classifier model to it

if torch.cuda.is_available():
    classifier.cuda()

Create a classifier with a Multilayer Perceptron (MLP) architecture

Define the optimizer algorithm

optimizer = torch.optim.Adam(classifier.parameters(), lr=1e-4, weight_decay=0.001)

Define the loss function used to assess the classification performance of the model

classifier_loss_fn = torch.nn.CrossEntropyLoss()

Train the MLP model

max_trn_batches = 100

from tqdm.auto import tqdm
from torchmetrics.classification import Accuracy

trn_n_dmso = 0
trn_n_crispr = 0
trn_n_orf = 0

# Set the model to training mode (this enables Dropout and batch normalization layers)
classifier.train()

trn_cls_loss_epoch = 0

trn_acc_metric = Accuracy(task="multiclass", num_classes=3)

# Training loop
trn_q = tqdm(total=max_trn_batches)
for trn_batch_i, (trn_batch_x, trn_batch_y, _) in enumerate(training_dl):
    if trn_batch_i >= max_trn_batches:
        break

    optimizer.zero_grad()

    if torch.cuda.is_available():
        trn_batch_x = trn_batch_x.cuda()

    trn_fx = feature_extractor(trn_batch_x)

    trn_batch_y_pred = classifier(trn_fx).cpu()

    trn_cls_loss = classifier_loss_fn(trn_batch_y_pred, trn_batch_y)
    trn_cls_loss.backward()

    optimizer.step()

    trn_cls_loss_epoch += trn_cls_loss.item()

    trn_acc_metric(trn_batch_y_pred.softmax(dim=1), trn_batch_y)

    trn_n_dmso += sum(trn_batch_y == 0)
    trn_n_crispr += sum(trn_batch_y == 1)
    trn_n_orf += sum(trn_batch_y == 2)

    trn_q.set_description(f"CE Loss: {trn_cls_loss.item():.04f}, Accuracy: {trn_acc_metric.compute()}, (Counts of DMSO: {trn_n_dmso}, CRISPR: {trn_n_crispr}, ORF: {trn_n_orf})")
    trn_q.update(1)

trn_q.close()

Train the MLP model

Compute the proportion of samples per category in the training set

trn_n_total = trn_n_dmso + trn_n_crispr + trn_n_orf
trn_n_dmso / trn_n_total, trn_n_crispr / trn_n_total, trn_n_orf / trn_n_total

(tensor(0.0110), tensor(0.3680), tensor(0.6210))

Check the average loss metric of the model on the training set

trn_cls_loss_epoch / trn_n_total

tensor(0.0379)

Compute the average accuracy of the model on the training set

trn_acc_metric.compute()

tensor(0.9230)

Validate the MLP model

Implement the validation loop

max_val_batches = 20

val_n_dmso = 0
val_n_crispr = 0
val_n_orf = 0

# Set the model to training mode (this enables Dropout and batch normalization layers)
classifier.eval()

val_cls_loss_epoch = 0

val_acc_metric = Accuracy(task="multiclass", num_classes=3)

val_q = tqdm(total=max_val_batches)
for val_batch_i, (val_batch_x, val_batch_y, _) in enumerate(validation_dl):
    if val_batch_i >= max_val_batches:
        break

    if torch.cuda.is_available():
        val_batch_x = val_batch_x.cuda()

    val_fx = feature_extractor(val_batch_x)

    with torch.no_grad():
        val_batch_y_pred = classifier(val_fx).cpu()

    val_cls_loss = classifier_loss_fn(val_batch_y_pred, val_batch_y)

    val_cls_loss_epoch += val_cls_loss.item()

    val_acc_metric(val_batch_y_pred.softmax(dim=1), val_batch_y)

    val_n_dmso += sum(val_batch_y == 0)
    val_n_crispr += sum(val_batch_y == 1)
    val_n_orf += sum(val_batch_y == 2)

    val_q.set_description(f"[Validation] CE Loss: {val_cls_loss.item():.04f}, Accuracy: {val_acc_metric.compute()}, (Counts of DMSO: {val_n_dmso}, CRISPR: {val_n_crispr}, ORF: {val_n_orf})")
    val_q.update(1)

val_q.close()

Failed retrieving: s3://cellpainting-gallery/cpg0016-jump/source_10/images/2021_06_28_U2OS_48_hr_run9/images/Dest210628-162003/Dest210628-162003_P02_T0001F007L01A01Z01C01.tif

Failed retrieving: s3://cellpainting-gallery/cpg0016-jump/source_10/images/2021_06_28_U2OS_48_hr_run9/images/Dest210628-162003/Dest210628-162003_F16_T0001F007L01A01Z01C01.tif

Validate the MLP model

Compute the proportion of samples per category in the validation set

val_n_total = val_n_dmso + val_n_crispr + val_n_orf
val_n_dmso / val_n_total, val_n_crispr / val_n_total, val_n_orf / val_n_total

(tensor(0.0250), tensor(0.3750), tensor(0.6000))

Check the average loss metric of the model on the validation set

val_cls_loss_epoch / val_n_total

tensor(0.0186)

Compute the average accuracy of the model on the validation set

val_acc_metric.compute()

tensor(0.9550)

Evaluate the model with the witheld testing data

Evaluate the classifier on the testing set to measure its generalization capacity

from torchmetrics.classification import ConfusionMatrix

max_tst_batches = 10

tst_n_dmso = 0
tst_n_crispr = 0
tst_n_orf = 0

# Set the model to training mode (this enables Dropout and batch normalization layers)
classifier.eval()

tst_cls_loss_epoch = 0

tst_acc_metric = Accuracy(task="multiclass", num_classes=3)
tst_confmat = ConfusionMatrix("multiclass", num_classes=3)

tst_q = tqdm(total=max_tst_batches)
for tst_batch_i, (tst_batch_x, tst_batch_y, _) in enumerate(validation_dl):
    if tst_batch_i >= max_tst_batches:
        break

    if torch.cuda.is_available():
        tst_batch_x = tst_batch_x.cuda()

    tst_fx = feature_extractor(tst_batch_x)

    with torch.no_grad():
        tst_batch_y_pred = classifier(tst_fx).cpu()

    tst_cls_loss = classifier_loss_fn(tst_batch_y_pred.cpu(), tst_batch_y)

    tst_cls_loss_epoch += tst_cls_loss.item()

    tst_acc_metric(tst_batch_y_pred.softmax(dim=1), tst_batch_y)

    tst_batch_y_prob = tst_batch_y_pred.softmax(dim=1)
    tst_confmat.update(tst_batch_y_prob, tst_batch_y)

    tst_n_dmso += sum(tst_batch_y == 0)
    tst_n_crispr += sum(tst_batch_y == 1)
    tst_n_orf += sum(tst_batch_y == 2)

    tst_q.set_description(f"[Testing] CE Loss: {tst_cls_loss.item():.04f}, Accuracy: {tst_acc_metric.compute()}, (Counts of DMSO: {tst_n_dmso}, CRISPR: {tst_n_crispr}, ORF: {tst_n_orf})")
    tst_q.update(1)

tst_q.close()

Failed retrieving: s3://cellpainting-gallery/cpg0016-jump/source_10/images/2021_06_28_U2OS_48_hr_run9/images/Dest210628-162003/Dest210628-162003_K19_T0001F008L01A01Z01C01.tif

Evaluate the model with the witheld testing data

Check the proportion of types of perturbation in the testing set

tst_n_total = tst_n_dmso + tst_n_crispr + tst_n_orf
tst_n_dmso / tst_n_total, tst_n_crispr / tst_n_total, tst_n_orf / tst_n_total

(tensor(0.0100), tensor(0.3300), tensor(0.6600))

Check the loss metrics on the testing set

tst_cls_loss_epoch / tst_n_total

tensor(0.0149)

Check the accuracy metrics on the testing set

tst_acc_metric.compute()

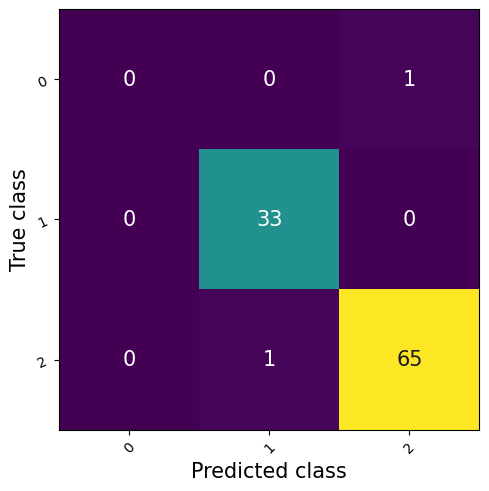

tst_confmat.compute()
tst_confmat.plot()

(<Figure size 640x480 with 1 Axes>,
 <Axes: xlabel='Predicted class', ylabel='True class'>)

Use the pre-trained model to identify the behavior of compounds

Note

Because the model has learned to recognize CRISPR, ORF, and NONE/DMSO effects, it can be used to determine the behavior of any treatment based on their morphological profile.

Test the classification pipeline with data from the Compund dataset.

compounds_ds = TiffS3Dataset(comp_plate_maps, wells_metadata, comp_plate_maps["Plate_name"].tolist(), 16, 24, 9, 5, shuffle=True)
compounds_dl = DataLoader(compounds_ds, batch_size=batch_size, num_workers=2, worker_init_fn=dataset_worker_init_fn)

batch_comp_x, batch_comp_y, batch_comp_meta = next(iter(compounds_dl))

if torch.cuda.is_available():
    batch_comp_x = batch_comp_x.cuda()

comp_fx = feature_extractor(batch_comp_x)

with torch.no_grad():
    comp_batch_y_pred = classifier(comp_fx).cpu()

comp_batch_y_pred.argmax(dim=1)

Failed retrieving: s3://cellpainting-gallery/cpg0016-jump/source_2/images/20210719_Batch_6/images/1086293829/1086293829_C19_T0001F007L01A01Z01C01.tif
Failed retrieving: s3://cellpainting-gallery/cpg0016-jump/source_10/images/2021_08_12_U2OS_48_hr_run15/images/Dest210803-160041/Dest210803-160041_D09_T0001F007L01A01Z01C01.tif
Failed retrieving: s3://cellpainting-gallery/cpg0016-jump/source_2/images/20210823_Batch_10/images/1086291931/1086291931_A08_T0001F007L01A01Z01C01.tif

tensor([2, 2, 1, 1, 2, 2, 1, 1, 1, 1])

Use the pre-trained model to identify the behavior of compounds

Look for any interesting compounds in PubChem.

def compound_query(well_position):
    return wells_metadata.query(f"well_position == '{well_position}' & Plate_type=='COMPOUND'")["broad_sample"].to_numpy()[0]

batch_comp_df = pd.DataFrame(batch_comp_meta)
batch_comp_df["Predicted_class"] = comp_batch_y_pred.argmax(dim=1)
batch_comp_df["Predicted_class"] = batch_comp_df["Predicted_class"].map(class_names)
batch_comp_df["Broad_compound"] = batch_comp_df["Well_position"].map(compound_query)
batch_comp_df

	Plate_name	Source_name	Batch_name	Plate_type	Plate_path	Well_position	Predicted_class	Broad_compound
0	EC000026	source_11	Batch1	COMPOUND	EC000026__2021-05-29T23_51_34-Measurement1	F22	ORF	BRD-K41599323-001-02-3
1	EC000127	source_11	Batch4	COMPOUND	EC000127__2021-09-24T00_36_37-Measurement2	J09	ORF	BRD-K19477839-001-07-6
2	PEC00001843	source_15	2021_12_17_Batch1	COMPOUND	PEC00001843__2021-12-17T07_31_02-Measurement1	B02	CRISPR	BRD-K58049875-001-03-9
3	110000296689	source_6	p210914CPU2OS48hw384exp027JUMP	COMPOUND	110000296689	I17	CRISPR	BRD-K38852836-001-04-9
4	1053601770	source_2	20210607_Batch_2	COMPOUND	1053601770	O05	ORF	BRD-K19227686-001-18-6
5	J12459d	source_3	CP_26_all_Phenix1	COMPOUND	J12459d__2021-09-25T13_01_11-Measurement1	B23	ORF	BRD-K87158025-003-08-7
6	C13443dW	source_3	CP_25_all_Phenix1	COMPOUND	C13443dW__2021-09-18T02_33_56-Measurement1	A05	CRISPR	BRD-K48278478-001-01-2
7	P06_ADMJUM026	source_5	JUMPCPE-20210902-Run26_20210903_010341	COMPOUND	P06_ADMJUM026	M14	CRISPR	BRD-K63430059-001-16-4
8	Dest210531-152634	source_10	2021_05_31_U2OS_48_hr_run1	COMPOUND	Dest210531-152634	K21	CRISPR	BRD-K20986415-001-02-6
9	110000294899	source_6	p210831CPU2OS48hw384exp024JUMP	COMPOUND	110000294899	L14	CRISPR	BRD-K97010173-001-04-1

Advanced Machine Learning with Python (Session 2 - Part 3)

Materials

Prepare the cpg0016-jump dataset

Inspect the dataset

Inspect the dataset

Inspect the dataset

Train a perturbation classifier model

Method

Use a pre-trained model to compute field-level morphological profiles from perturbation plates

Use a pre-trained model to compute field-level morphological profiles from perturbation plates

Use a pre-trained model to compute field-level morphological profiles from perturbation plates

Use a pre-trained model to compute field-level morphological profiles from perturbation plates

Create a classifier with a Multilayer Perceptron (MLP) architecture

Create a classifier with a Multilayer Perceptron (MLP) architecture

Train the MLP model

Train the MLP model

Validate the MLP model

Validate the MLP model

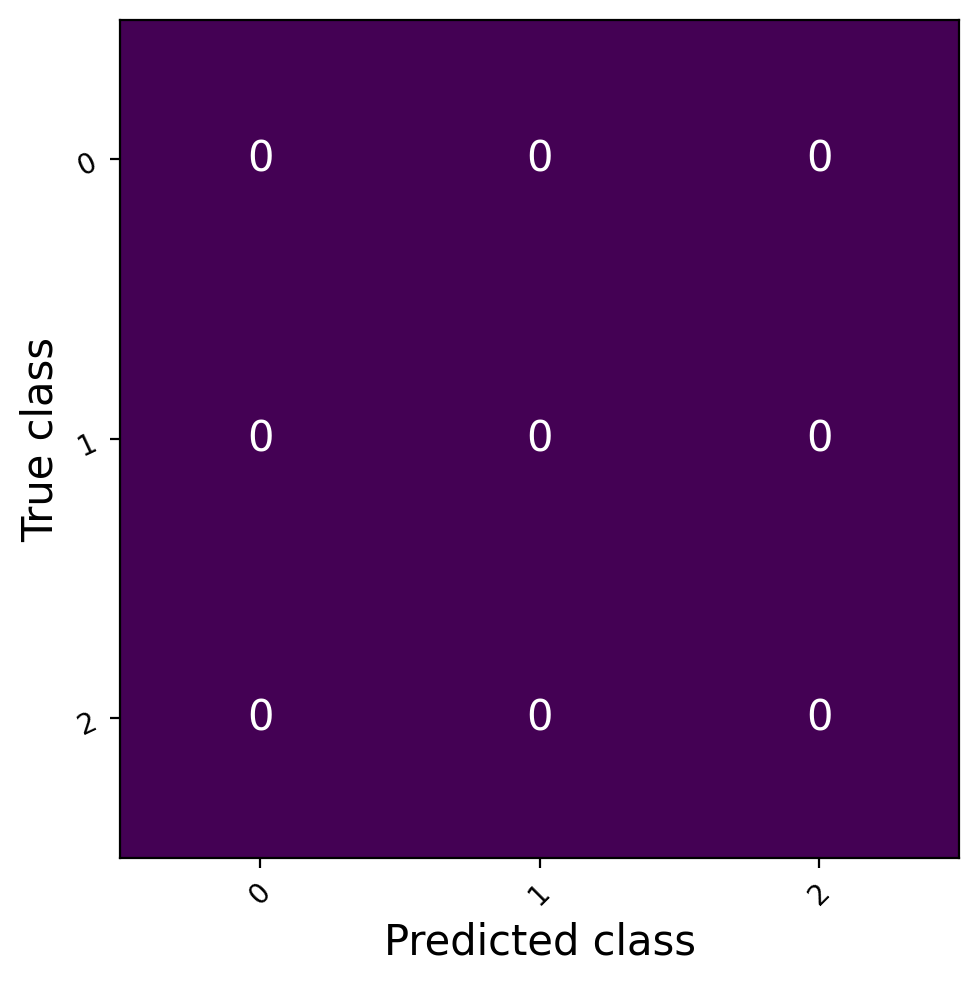

Evaluate the model with the witheld testing data

Evaluate the model with the witheld testing data

Use the pre-trained model to identify the behavior of compounds

Use the pre-trained model to identify the behavior of compounds

Prepare the `cpg0016-jump` dataset
