Introduction to QuPath

Peter Sobolewski (he/him)

Systems Analyst, Imaging Applications

Research IT

https://qupath.github.io

Lesson Plan

• Brief introduction to QuPath
• Key concept: Projects
• QuPath GUI layout and toolbars
• Making & Managing Annotations
• Setting stain Vectors
• Pixel classification using a thresholder

What is QuPath?

QuPath is an open-source image analysis program

Key feature:
QuPath has a graphical user interface (GUI) for performant working with very large 2D images, like those produced by slide scanners

A bit of background

• project was started at The Queen’s University Belfast by Pete Bankhead
• first public release was in October 2016
• currently developed by Pete Bankhead’s group at The University of Edinburgh
• >7500 publications using QuPath

If you use it, cite it!

https://qupath.readthedocs.io/en/stable/docs/intro/citing.html

Strengths of QuPath

• Was designed for very large, multiscale 2D files

• Includes extensive annotation, overlay, and visualization options

• It includes robust algorithms for common analysis tasks

• It includes interactive machine learning for pixel and object classification

• Recordable workflows allow for easy batch processing

• Integrated ImageJ

• Robust scripting support (Groovy)

Limitations

• Limited 3D & time series viewing capabilities:

  • single planes only

• Some complex functions require scripting

• Extension ecosystem is relatively limited

• No support for zarr/NGFF

Getting help

• In-app documentation: Help menu
• Online documentation: https://qupath.readthedocs.io/en/stable/index.html
  • Includes tutorials, scripting, advanced concepts
• YouTube Channel: https://www.youtube.com/c/QuPath
• Image.sc Forums: https://forum.image.sc/tag/qupath

Key concept: QuPath project

• projects are the best way to organize your analysis work
• projects are frequently required by some scripts/extensions
• projects are folders:
  • group together related images
  • organize data, scripts, classifiers, etc.

How create a project?

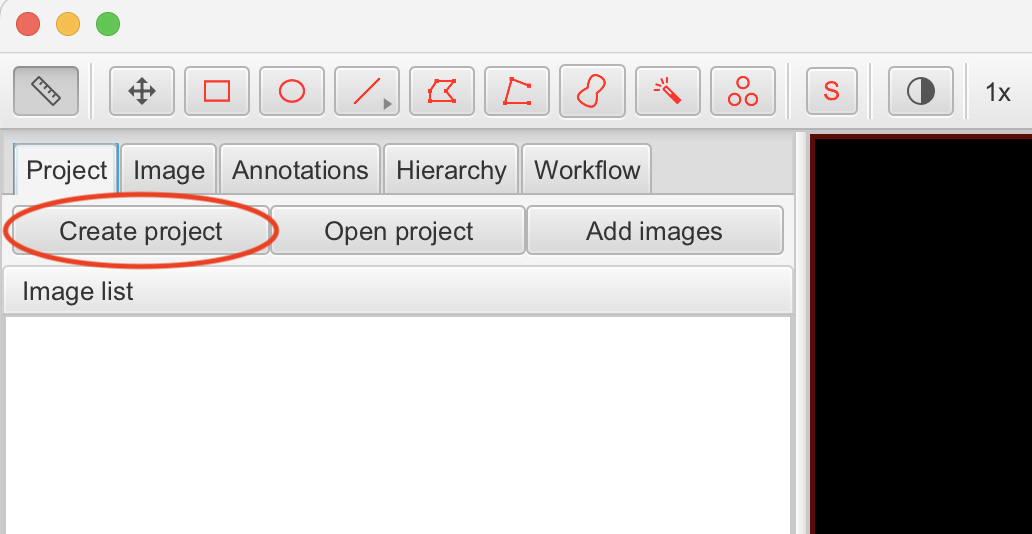

• Create project button
• File ‣ Project… ‣ Create project

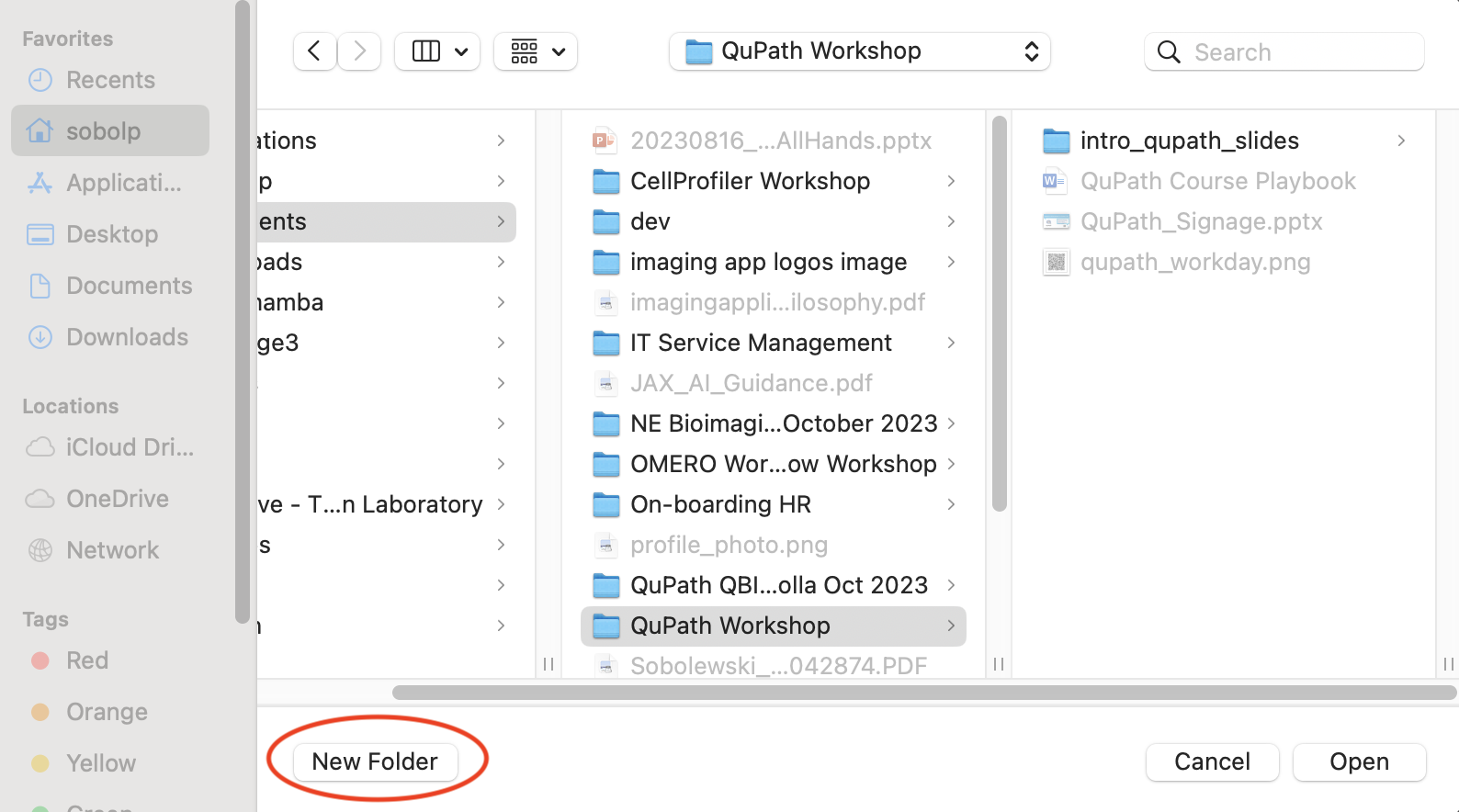

When making a project, remember to create a folder for it!

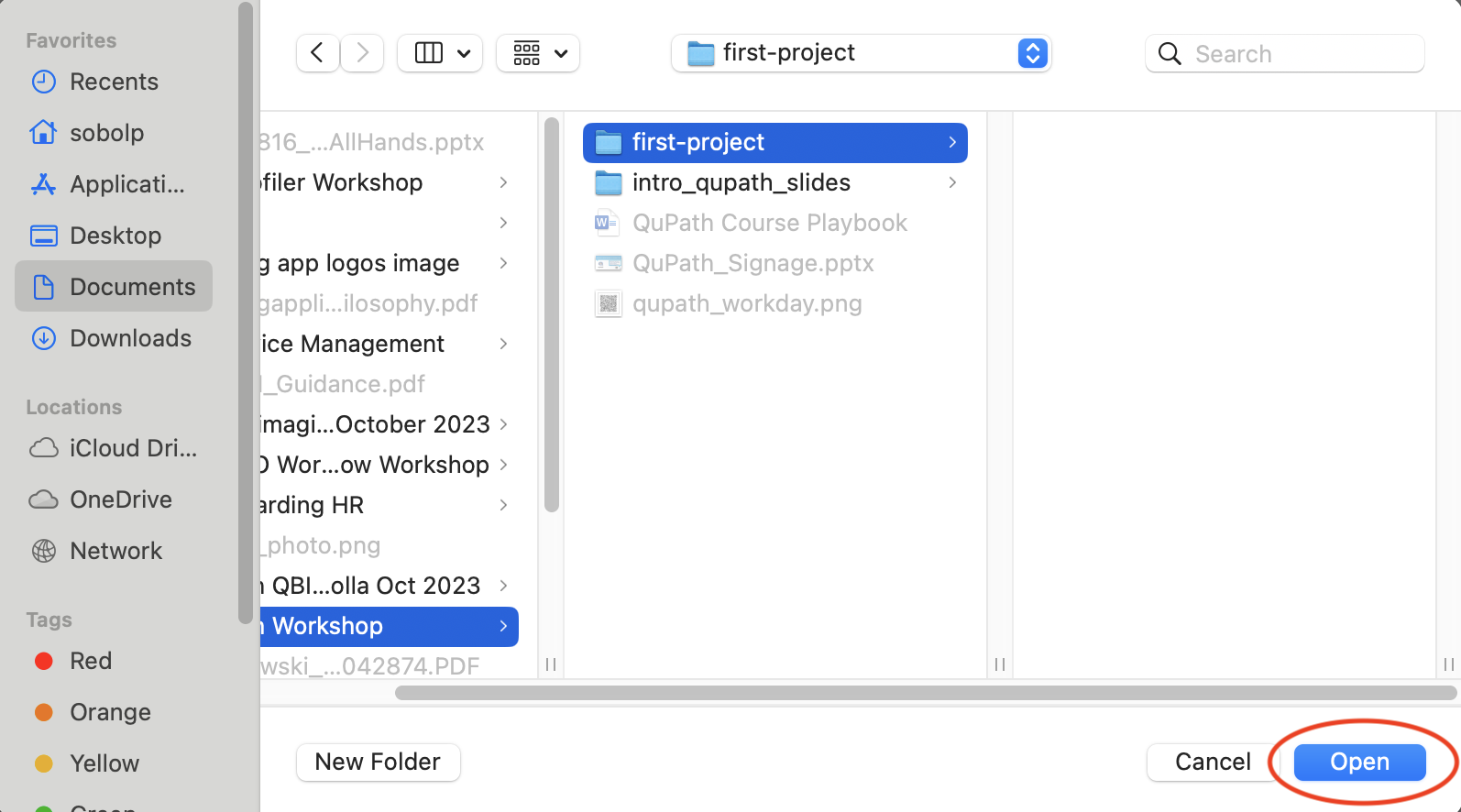

• Drag-and-drop an empty folder

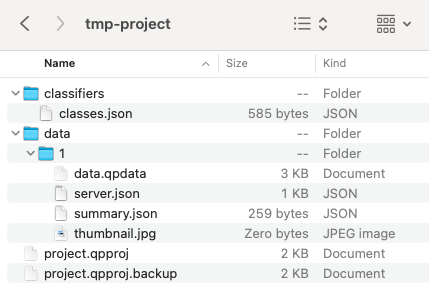

Anatomy of a QuPath project

How to add images to a project?

• Drag and drop
• File ‣ Project… ‣ Add images

image files will not be copied into your project folder!

• A link (URI) will be used!

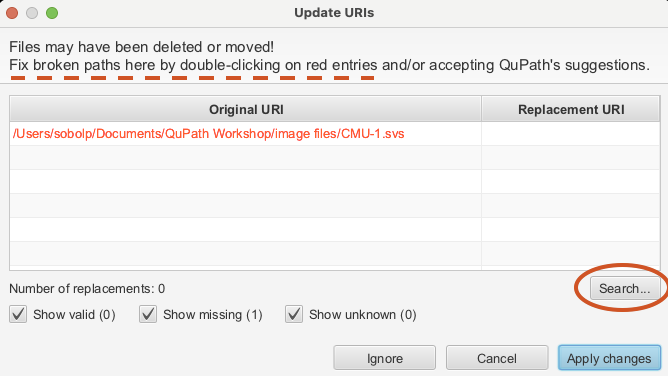

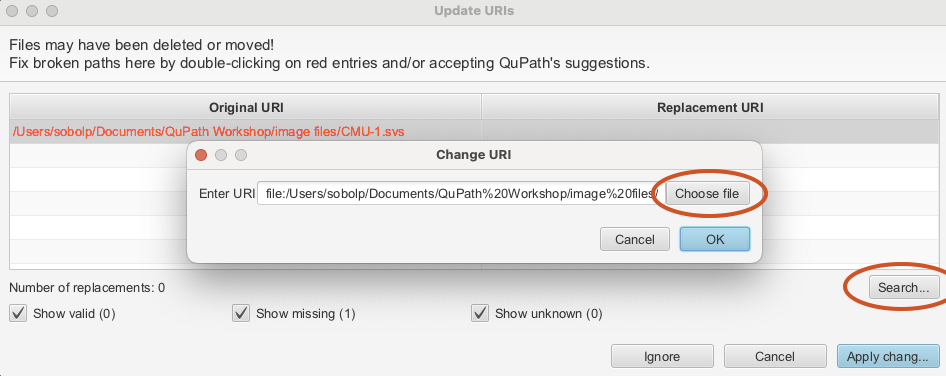

• If you move the file(s) you will be prompted to update the link.

QuPath can handle large 2D images, e.g. whole-slide images—there is no need to make tiles first

QuPath will never edit your image files!

• images in a project are actually QuPath objects holding metadata, annotations, etc.
• The image data/pixels are accessed from the files via an ImageServer
• Duplicating/saving images within a project only relates to QuPath specific data, not the original files or pixels

When images are removed from a project, the data files are not deleted!

Let’s make our first QuPath project!

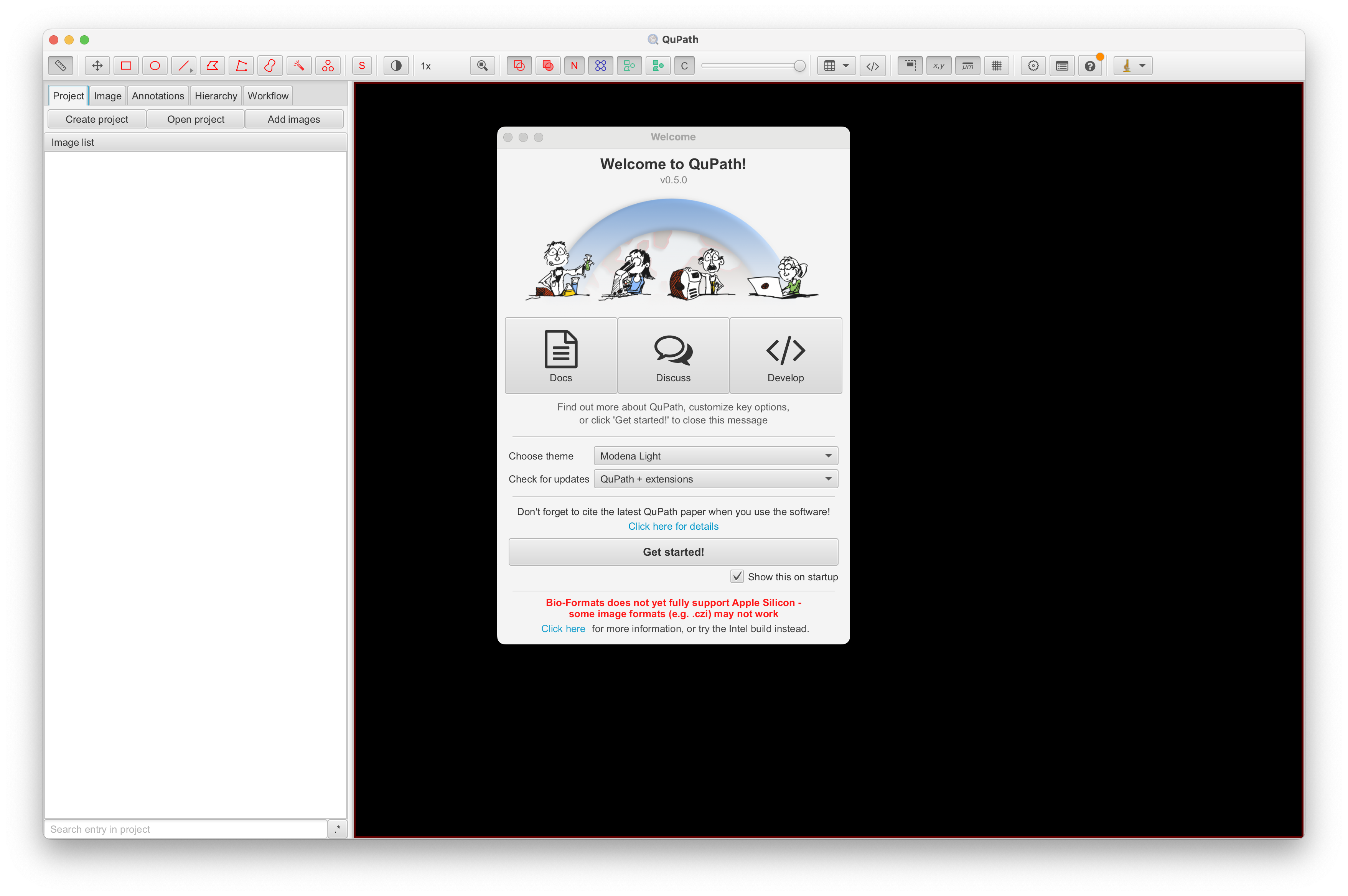

Launch QuPath

Click Create project

Make sure to make a new, empty folder

Select the empty folder for the project

Add an image

Use drag-and-drop!

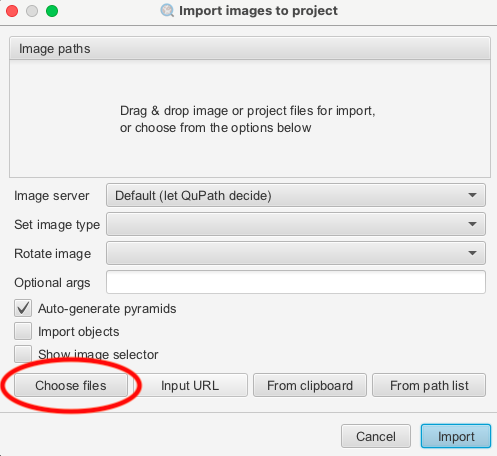

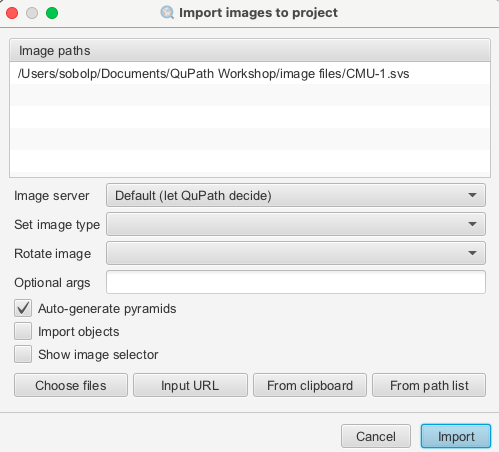

Use Choose files—or drag-and-drop

Click Import

Defaults are OK for the majority of cases

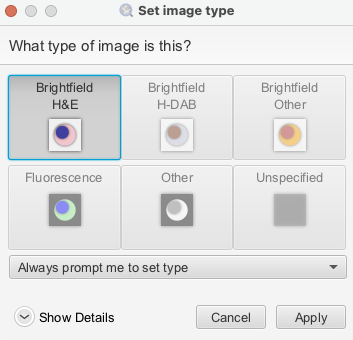

Set Image type

This affects the behavior of tools & features! (but you can change it)

🎉 QuPath project with an image 🎉

QuPath GUI layout

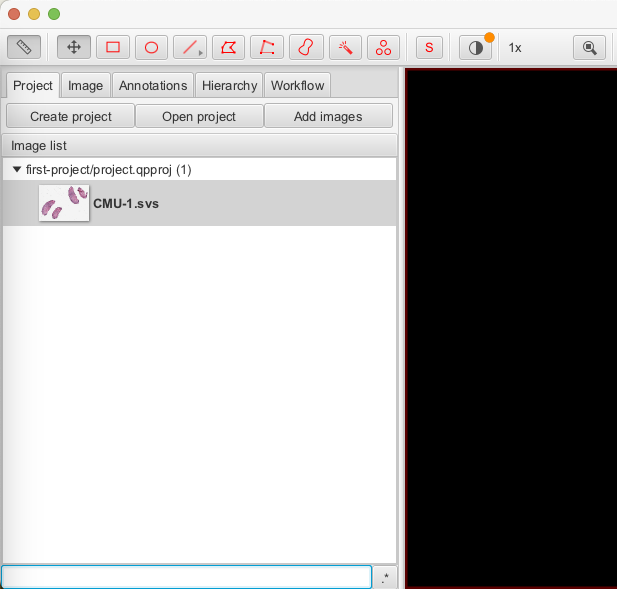

Analysis Pane: Project tab

Double-click an image to open it in the viewer on the right – it will be bolded in the list

Analysis Pane: Project tab

Right-click on images to:

• Rename, remove or duplicate
  • When you duplicate, can choose to also copy the QuPath object data files
• To add metadata or descriptions
• Blind/Mask samples: replace names with hashes

These changes only affect the QuPath objects in this project, not your data files!

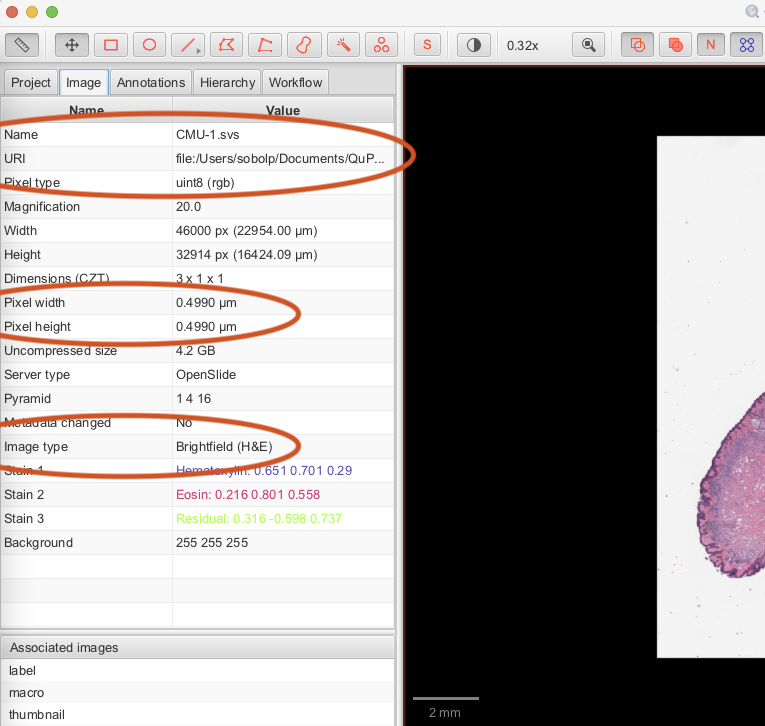

Analysis Pane: Image tab

Analysis Pane: Image tab

• Name and location of the image file
• Pixel width/height: scale calibration, very important
  • can set yourself using a Line annotation
• Server type: how QuPath is reading the raw image file, set at import
• Pyramid: levels of downsampling for performance
• Image type: determines some default functions, e.g. channel information

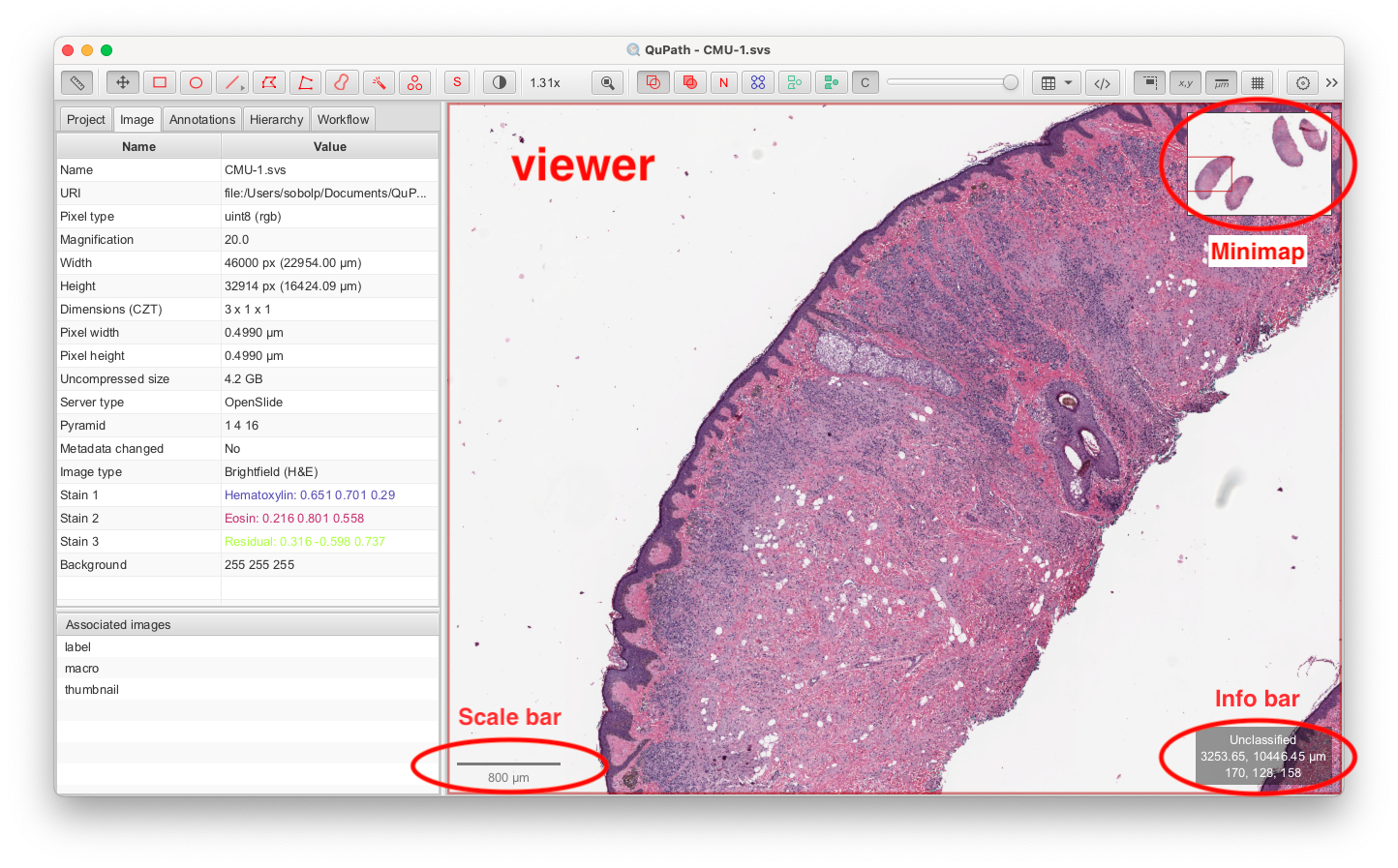

QuPath viewer

• Minimap: Image overview, allows for quick navigation
• Info bar: gives Pixel coordinate and value
• Right-click the viewer to close or make a grid

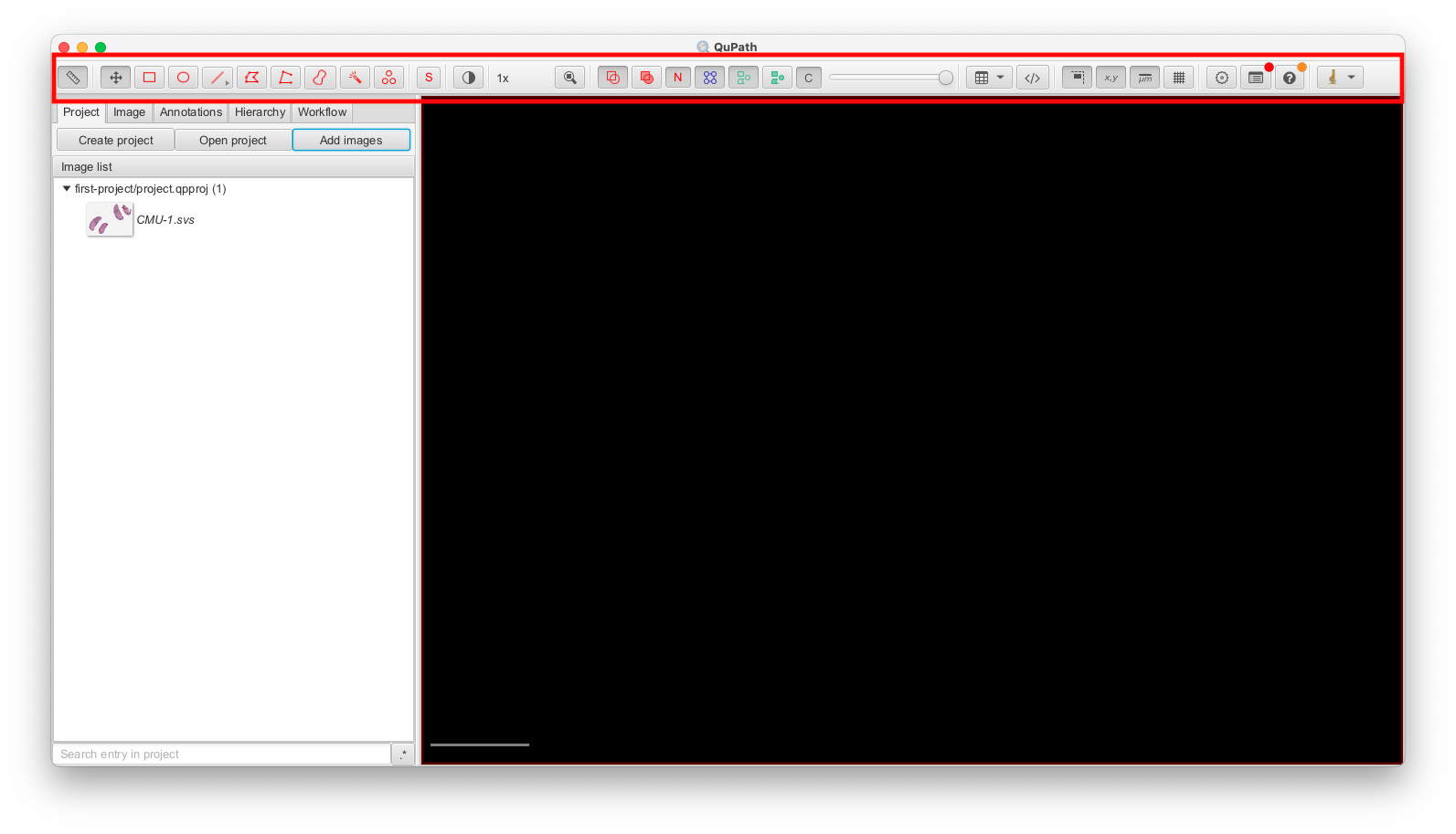

QuPath toolbar

QuPath toolbar

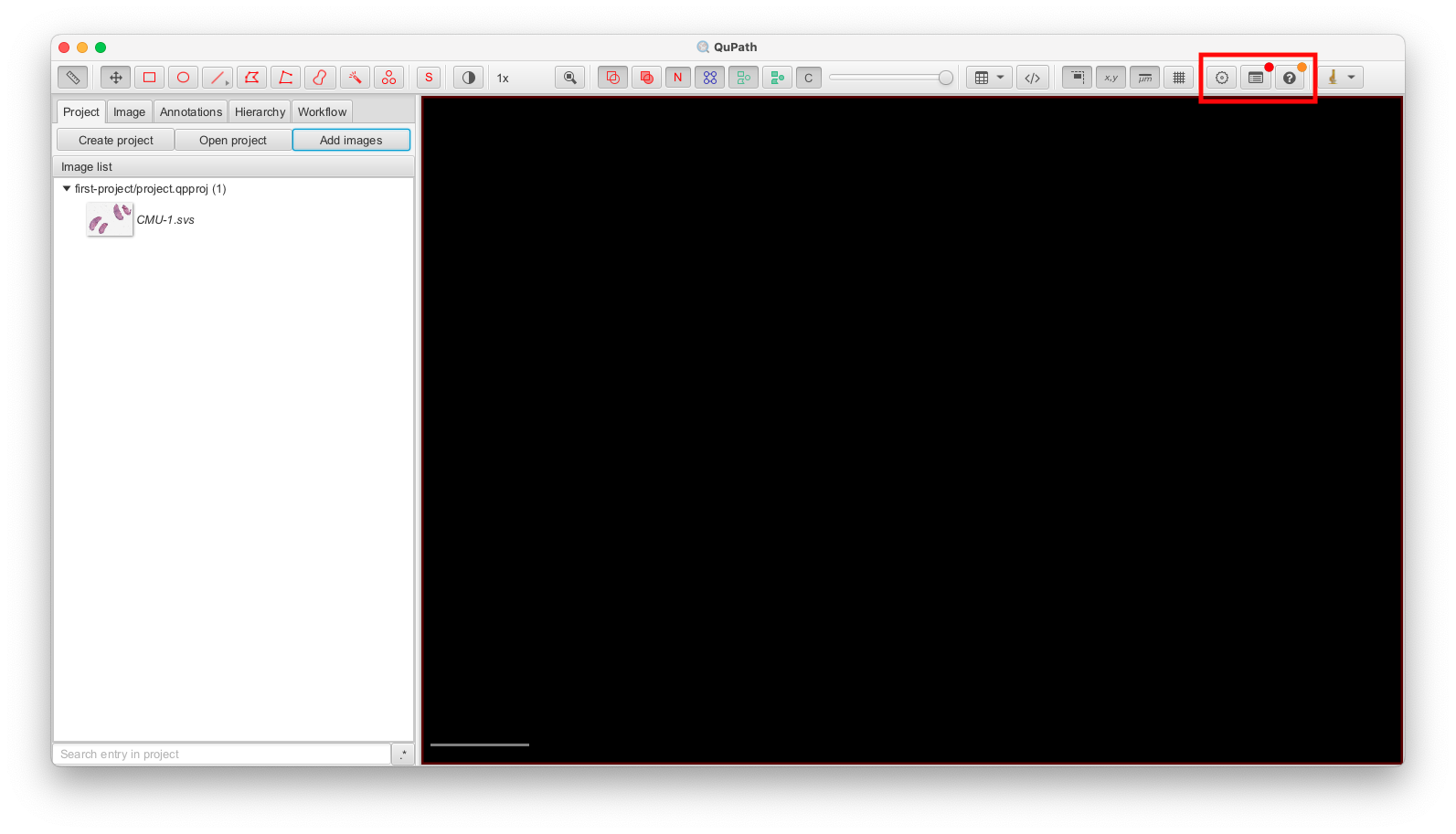

QuPath toolbar: information

QuPath toolbar: information

• Preferences: settings that customize QuPath behavior, including look-and-feel, extensions, etc.
• Log: message logger, showing Info, Warnings, and Errors—helpful when troubleshooting or asking for help
  • Dot notifies of un-read Errors
• Interactive Help: Provides contextual help based on state of application/viewer, what you mouse over, etc.
  • Dot notifies for potential problems, will offer solutions

QuPath toolbar: Annotation tools

• + : Move tool: pan around the image or move objects
• For the Polyline tool: double-click to end
• Brush: the size scales with zoom level
• Magic wand: context-aware brush that takes into account intensity & zoom
• S: Switch to selection mode, where tools select objects instead

QuPath toolbar: brightness & contrast, zoom

• Brightness & contrast dialog also allows for control of channels and colormaps
• Can manually specify a zoom level by double-click
• Zoom button resets zoom to fit whole image in viewer

QuPath toolbar: show/hide & fill, opacity

• Enable showing Annotations or Detections, plus whether they are filled
• C: show/hides pixel classification overlay
• Slider controls opacity, so you can see through to the data beneath

If you can’t see things you expect, check that they aren’t hidden!

QuPath toolbar: measurements table & scripting

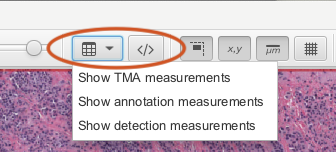

• Measurement Table drop-down menu enables opening a table view of measurements associated with different object types
• The Script Editor is used for automation and advanced tasks

QuPath GUI Pro-tip: Command list

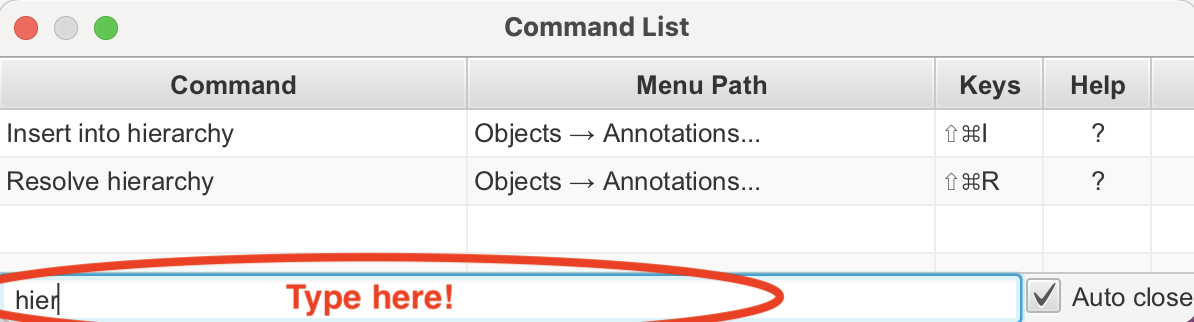

For menu items, press Command/Control-L and start typing what you remember to get the menu item/command!

Making & Managing Annotations

Annotation tool keybindings

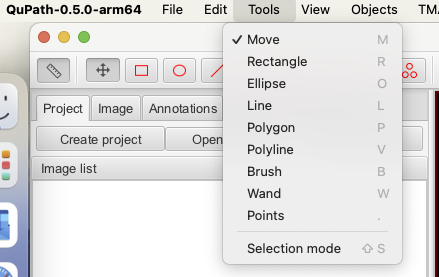

• Tools are also accessible in the Tools menu, which shows the shortcuts

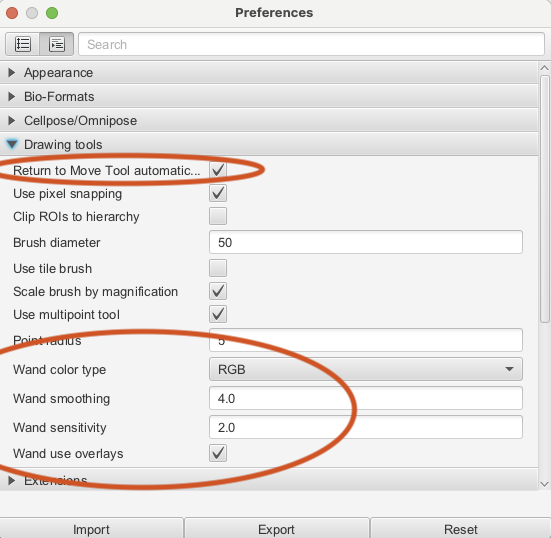

Annotation tool preferences

Annotation tool tips and tricks

• Annotations are editable, unless you lock them (Right-click ‣ Lock)
• Move tool can be toggled with Space bar
  • Double-click to select objects
• For Ellipse & Rectangle can also use Objects ‣ Annotations… ‣ Specify annotation
• To start fresh: Objects ‣ Delete… ‣ Delete all annotations
• Brush and Wand scale with zoom; they become more precise as you zoom in

Annotation tool tips and tricks

• You can use the Brush or Wand tool to refine selected Annotations
  • start from the inside of the annotation, to expand it
    • Note: if you want to make an Annotation inside another Annotation, you need to first lock it.
  • hold Alt/Option and start from the outside to reduce it
• Use Shift with the Brush or Wand to add to an Annotation (discontinuous)

Annotations exercise 1

Take a few minutes to try out the different tools

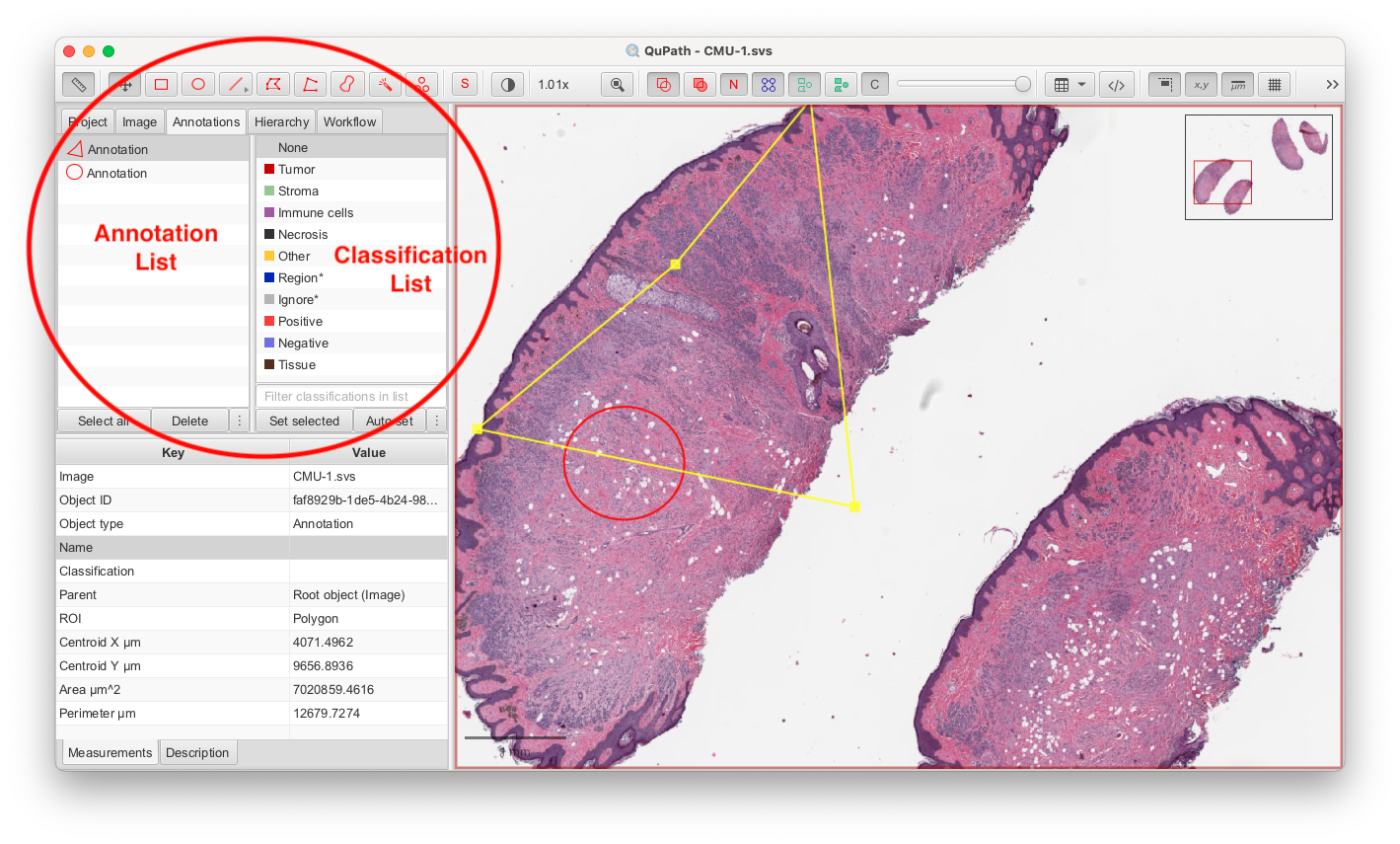

Analysis Pane: Annotation tab

• Annotation list lets you select, delete
  • Right-click to lock or edit properties (name, color)
  • You can shift or control click to multi-select
• Classification list lets you assign Annotations to classes

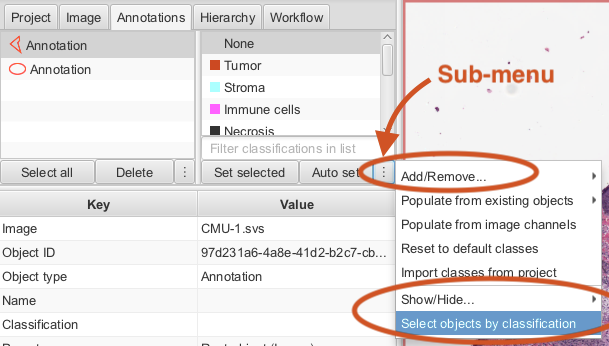

Analysis Pane: Annotation tab: Classes

• Classes group objects in a more powerful way than names
• You can add your own classes or remove existing ones
  • Note: Populate commands refer to the class list

Majority of QuPath functions rely on using Classes

Analysis Pane: Annotations tab: Set and autoset

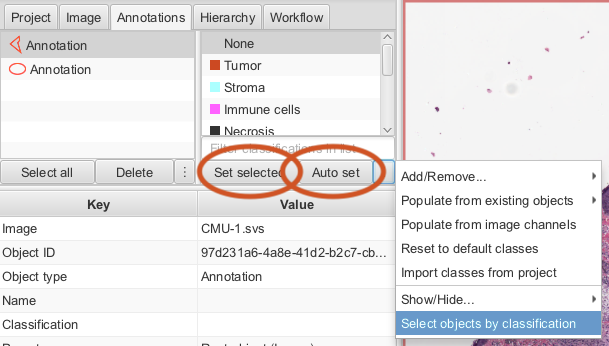

• Set selected assigns all selected Annotations to a selected class
• Auto set assigns all new Annotations (regardless of type) to the selected class

Classes with a * are ignored in measurements, percentages, etc.

Annotations exercise 2

1. Add a Tissue class
2. Make Annotations for each of the tissue slices
3. Assign the 4 Annotations to the Tissue class
4. Name the 4 Annotations slice 1 through slice 4 (left to right)

First delete all annotations (Objects ‣ Delete…) or duplicate the image (uncheck Also duplicate data)

Analysis Pane: Annotation measurements

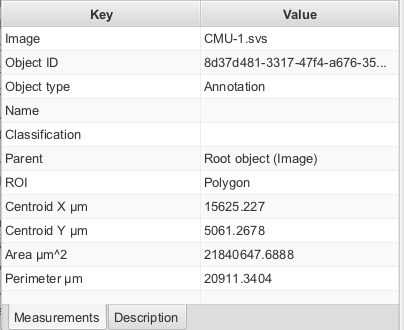

• Annotations have basic Measurements that depend on their type (length, area, perimeter, etc.)

Annotation measurements: measurement tables

• You can generate a table using the Show measurements table Toolbar button

Analysis Pane: Hierarchy tab

• Presents the relationship between objects:
  • Parent ‣ Child

For Annotations, the entire area of a child must be inside the parent

• Objects ‣ Annotations… ‣ Resolve hierarchy
  • QuPath will place all child objects with parent objects
• Objects ‣ Annotations… ‣ Insert into hierarchy
  • QuPath will insert the selected objects into the hierarchy

Annotations exercise 3

1. Make a Border class
2. Make a few Line Annotations per tissue slice to measure the thickness of the dark purple edge region
3. Assign the lines to the Border class
4. Use Resolve hierarchy to assign the lines to slices
5. Browse the Measurements table: right-click to show just the Border class

First Lock all of your Tissue Annotations to prevent accidental editing

Setting stain vectors

Stain separation/deconvolution

• Aims to extract information about individual chromogenic stains from the RGB values of each pixel
• e.g. convert (R, G, B) to (H, E, residual)

For fluorescence images, single channels are typically collected, so this isn’t needed.

• When you select image type on import, default separation is performed

Start with a clean copy

• Let’s start by duplicating our image:
  • Analysis Pane ‣ Projects tab
  • Right-click the image and select Duplicate

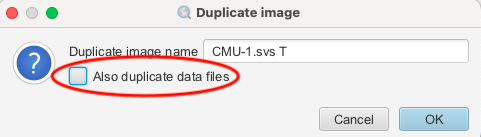

  • Un-check Also duplicate data files

Setting stain vectors

• Use Annotation tools to make a small Annotation that includes:
  • some background
  • some pixels of each stain
• Analyze ‣ Estimate stain vectors

Estimate stain vectors

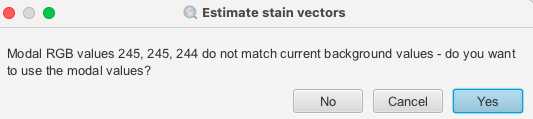

• QuPath has detected that the most common pixel value (the mode) is different from the current background
• Click Yes to set the new value

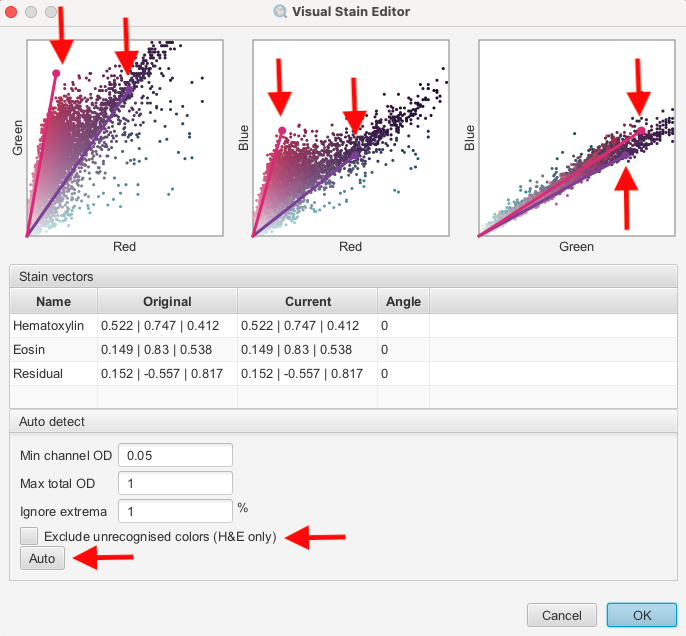

Visual stain editor

Visual stain editor

• At the bottom are settings for Auto vector estimation
• Click Auto to get an initial estimate
• Look at the color panels, which are views at the 3D color space from orthogonal sides
  • if you have other pixels, can try to exclude them (checkbox) and run Auto again
• want the vectors to encompass the reddish-pink-purple pixels (those of H&E)
• Can manually tweak the vectors by using the handles

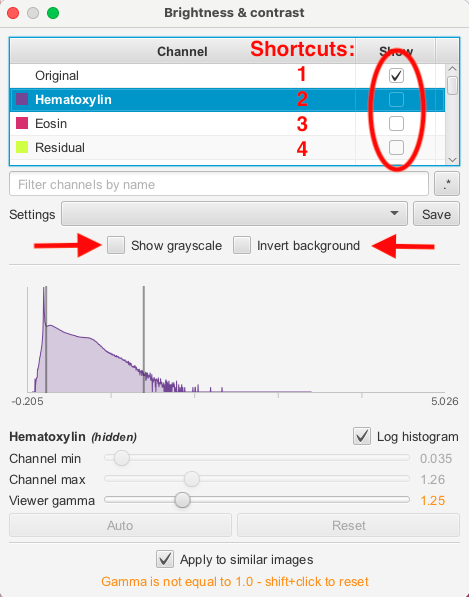

Checking the results: Brightness & Contrast

• Want visual separation between stains and low residual

Stain vectors exercise

1. Make a duplicate image, uncheck Also duplicate data, and name it vectors (or similar)
2. Draw a small Annotation that includes both stains and background, ~30-50% background
3. Use Analyze ‣ Estimate stain vectors and the Visual stain editor to adjust the stain deconvolution
4. Use Brightness & Contrast to check the H&E color channels in different areas

Automated Annotations via Thresholding

Thresholding in QuPath

• Thresholding is a type of Pixel Classification
  • Is a given pixel above or below a certain numeric value?
  • Assign it to a Class
• Most commonly used to create Annotations, e.g. Tissue vs. background

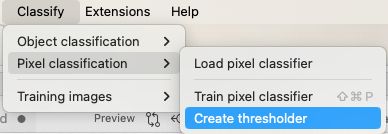

• Menu: Classify ‣ Pixel classification ‣ Create thresholder

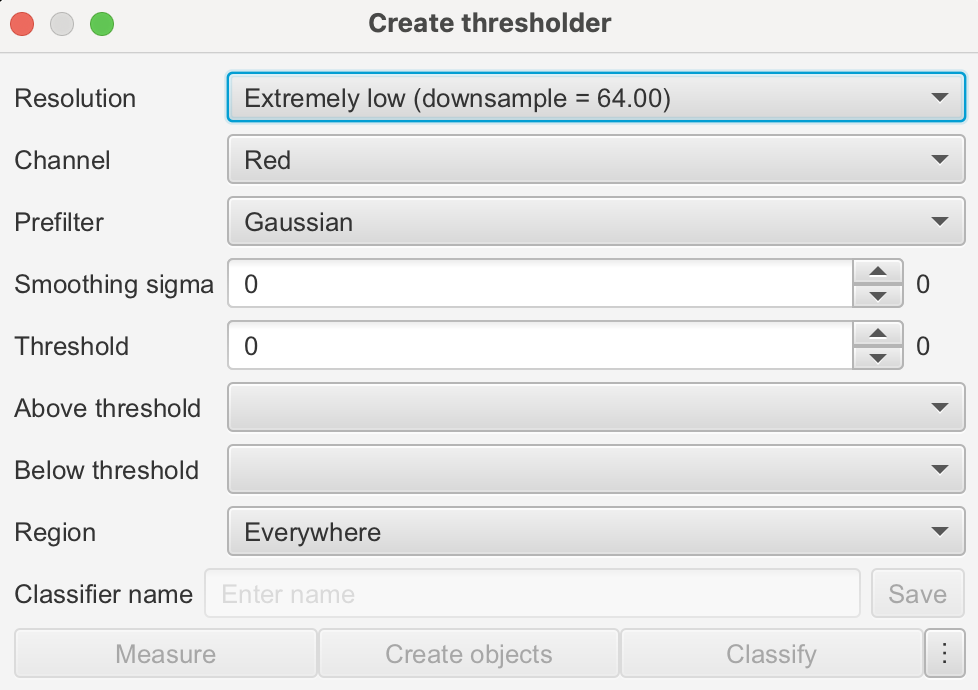

Pixel classification ‣ Create thresholder

Thresholder parameters

• Resolution: lower resolution is less computationally intensive, but loses details
• Channel: channel(s) to compare vs. threshold
  • for RGB images or tissue detection, Average channels can be a good choice
• Prefilter: preprocessing to apply prior to thresholding
  • Gaussian is typical, to smooth out noise
• Smoothing sigma: radius of prefilter, in pixels

Thresholder parameters

• Threshold: numeric value that will be used

Note

• For RGB, white is (255, 255, 255) and black is (0, 0, 0)
• For intensity channels (e.g. stains), 0 is background and higher values represent signal

• Above threshold: the class that these pixels will be assigned to
• Below threshold: the class that these pixels will be assigned to

Double-click on Above or Below to swap classes!

Thresholder post-processing

You need to save your thresholder before you can use it!

• Measure: requires existing Annotations, gives areas and % of classes
• Create objects: creates objects and assigns them to the classes
• Classify: assigns Detections to the classes

Thresholder: Create objects

• Choose the parent of the new objects, generally for Tissue you want it to be the image

Thresholder: Create objects

We are segmenting 4 large tissue slices, so we want to make:

• Annotations, that are large, without holes
• Separate objects (of the same class) for each slice

Thresholder: Load classifier to reuse

We saved our classifier (thresholder), so we can re-use it:

Thresholder exercise

• Duplicate your stain vectors image and delete any Annotations
• Zoom so you see 1 or 2 whole tissue slices
• Open Pixel classification ‣ Create thresholder
• Adjust parameters until you have the 4 tissue slices as class Tissue
• Save the classifier as Tissue (or similar)
• Use Create objects to make 4 annotations, one for each slice

Sharing QuPath projects

QuPath projects are portable

Sharing a QuPath project:

• zip up the entire project directory
• email or share it with a colleague

Important

Ensure they can access the actual image files!
The project folder only contains QuPath objects and data!
The image files will not be inside the project (unless you had placed them there)!

Receiving a QuPath project

You will need to re-link the project to the location of the actual image files

Re-linking images: Update URIs

Double-click each red image and choose the new location individually:

Or if all of the images are together, click Search… to find the new enclosing folder

Back to pixel classification

Thresholder measurement exercise

• Will need some parent objects: the Tissue annotations
• Duplicate the image with the Tissue annotations generated by the thresholder

Ensure Also duplicate data is checked!

• Ensure just there are just 4 Annotations, one for each tissue slice

Thresholding within an Annotation

• Let’s analyze the white areas within the Tissue Annotations
  • We had ensured they were filled before to get the areas of the slices
• Create a new Class: White or lumens, etc.
• Classify ‣ Pixel classification ‣ Create thresholder
• Adjust the properties of your Thresholder to highlight the hole-like areas as the new Class, while the rest is Stroma

Thresholding within an Annotation

• Once you have reasonable segmentation, give the classifier a meaningful name and save it

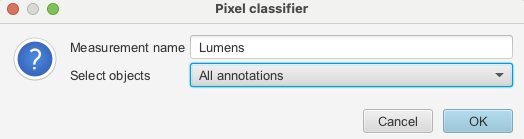

• To add area-based measurements to our existing Tissue Annotations, click Measure

Creating objects within an Annotation

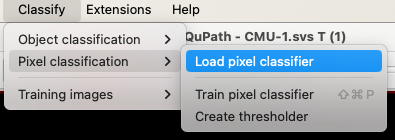

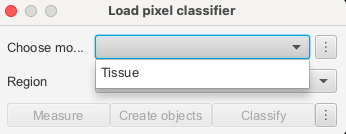

• Use Classify ‣ Pixel classification ‣ Load pixel classifier and load the previous classifier

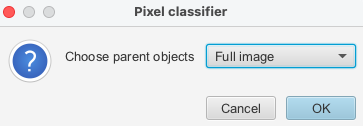

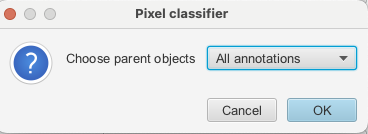

• Click Create objects and select All Annotations for Choose parent objects:

Create objects within an Annotation

• We want one Annotation of the new class per tissue slice
• Select Annotation as New object type
• Enter a Minimum object size, the area of the things we want to detect, the lumens/holes, maybe 200 µm²?
• Enter a similar value for Minimum hole size—this would be holes within the objects we are interested in!

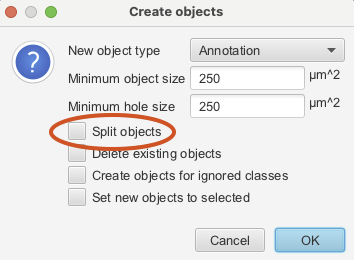

Ensure Split objects is not checked!

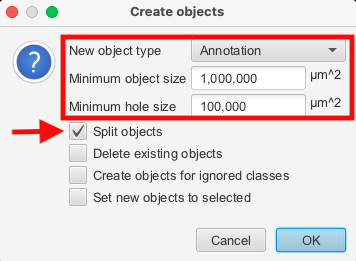

Create objects dialog

Training a Pixel classifier

Going beyond thresholds

• QuPath includes built in support for machine learning pixel classification
• Classifiers can be trained, saved, and used for inference (classification)
• Instead of a simple numeric cutoff, training uses Annotations of two or more classes and a number of different channels & features (computed values per pixel)

Training a pixel classifier: setup

• We’re going to look at sub-regions of the tissue slices, so will need some parent objects, the Tissue annotations
• Duplicate the image with the original Tissue annotations generated by the thresholder

Ensure Also duplicate data is checked!

• Ensure just there are just 4 Annotations, one for each tissue slice

Training a pixel classifier: setup

• Ensure you have three classes:
  • e.g. Stroma, border, lumens
• Use the Polyline tool (V) to paint a few squiggles in:
  • the dark purple/brown border areas, set class border
  • the white holes, set class lumens
  • other parts of the tissue slice, set class Stroma

We could make even more…

Training a pixel classifier

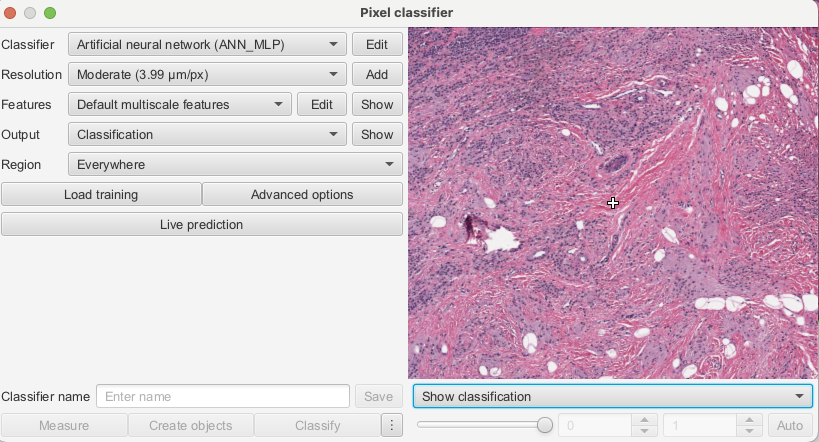

Classify ‣ Pixel classification ‣ Train pixel classifier

Training a pixel classifier

Pixel classifier: Key settings

• Classifier: type of classifier, for initial work recommend Random trees, less of a black box can provide importance of features vs. ANN_MLP
• Resolution: as before, controls the level of detail used as a trade-off to performance
• Features: additional computed features to be used by the classifier
• Output: single class per pixel or estimated probability of classes

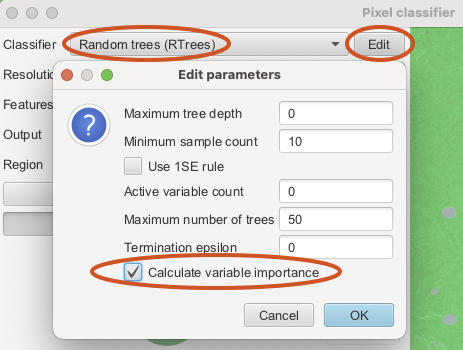

Pixel classifier: Random trees

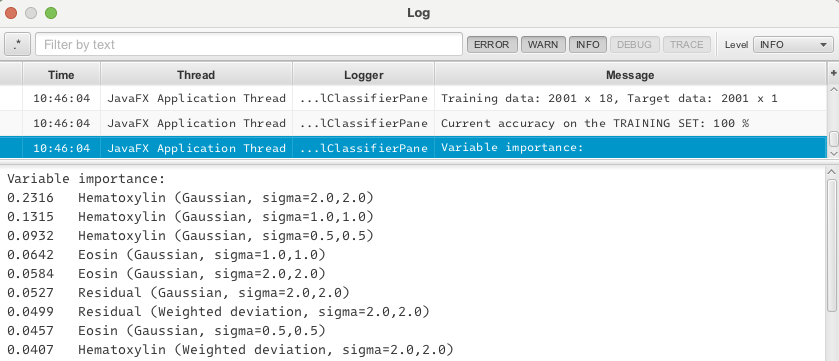

Pixel classifier: Random trees: variable importance

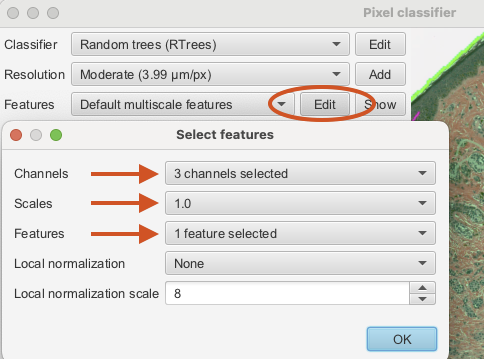

Pixel classifier: selecting features

Pixel classifier: selecting features

• Channels: choose channels that can discriminate the classes, typically the stains
• Scales: controls the size of the smoothing/processing kernel, so can help identify (or suppress) details
• Features: additional calculated transformations, can check their importance in the log (for RTrees only)

Typically, fewer, but well-chosen features provides more robust results.

Pixel classifier: features

	From QuPath docs
Gaussian filter	General-purpose
Laplacian of Gaussian	Blob-like things, some edges
Weighted deviation	Textured vs. smooth areas
Gradient magnitude	Edges
Structure tensor eigenvalues	Long, stringy things
Structure tensor coherence	‘Oriented’ regions
Hessian determinant	Blob-like things
Hessian eigenvalues	Long, stringy things

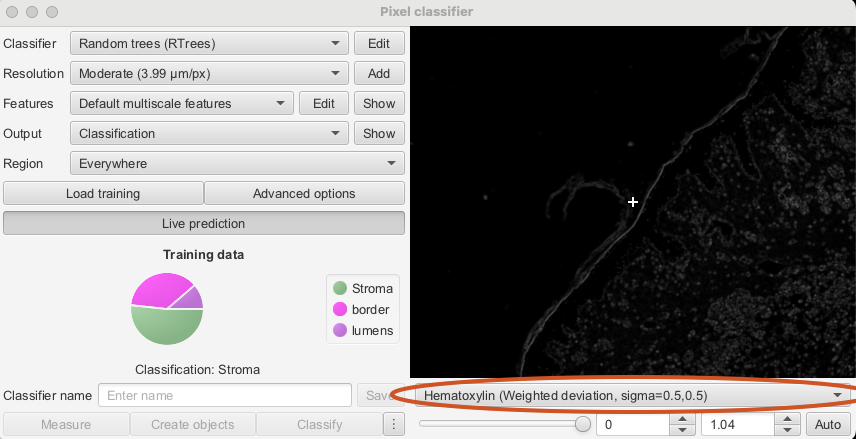

Pixel classifier: visualizing features

Use the C key and opacity slider!

Pixel classifier: advanced options

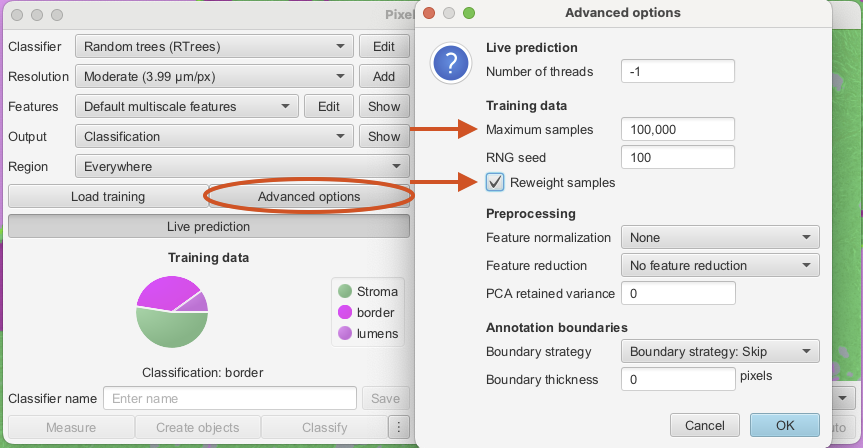

Pixel classifier: advanced options

• Maximum samples: number of pixels from training Annotations used, if exceeded pixels will be sampled randomly

Typically, using Polyline Annotation squiggles gives best results

• Reweight samples: weighs the training pixels by class balance

Does not let you ignore class balance totally!

Pixel classifier: exercise

Using Random trees classifier, test out impact of classifier parameters, especially:

- Resolution
- Features: use the `Log` to check importance

You can add more Annotations!

When reasonable, save the classifier and your image with training Annotations

Load and run your classifier (Create objects) on a fresh copy of the 4 Annotation image

Pixel classifier: final tips

• Can be easiest to make a project dedicated to training a classifier
• Can annotate multiple images, save them, and then use Load training to add them to the training data
• Once saved, you can copy the classifier to a new project for inference or use Import from file in the Load pixel classifier dialog

Make a note of your features & parameters, in case you want to train again!

Key concept: QuPath objects

QuPath is more than a viewer

Workflow:

• View pixels
• Identify objects
• Identify child objects
  • Count
  • Measure
  • Classify

QuPath Objects

All QuPath objects have:

• a name
• a region of interest (ROI)
• a class
• measurements/features

Annotations

• Large, editable objects
• Manually made or via pixel classifier
• Few default measurements (shape related)
• More “costly” computationally

You want to have few Annotations and use them as parent objects

Detections

• Small(er), non-editable objects
• Generated by QuPath, within a parent object
• Many default measurements (shape and intensity)
• “Cheap” computationally, can have 100K+

Detections can be classified!

Special Detections

Cells

• two ROI: cell boundary and nucleus (optional)
• have shape and intensity measurements for both

Tiles

• groups of pixels (superpixels)

Superpixels don’t have any default measurements

• if classified, can be merged into Annotations

Measurements & features

• Measurements & features can be summarized in tables for annotations and detections
• Default measurements include shape-related measurements and intensity-related measurements (Detections)
• Can be used to train a machine learning object classifier
• Additional measurements/features can be added using: Analyze ‣ Calculate features

Adding additional measurements

• Smoothed features: use a weighted average of the corresponding measurements of neighboring objects
• Intensity features: mean, SD, etc. of channel intensities
• Shape features: Area, perimeter, caliper, etc.

By default:

• Annotations have only shape-related measurements
• Cell detections have both shape and intensity measurements
• Tile detections have no measurements

Cell detection

QuPath cell detection

• built-in cell segmentation algorithm, based on thresholding
  • automatic tiling and parallel processing
• detects nucleus and then expands to get cell body
• obtained Cell Detections will have shape and intensity measurements for both nucleus and cell

ML approaches including Cellpose and Stardist are available as extensions

Detecting cells: setup

• Will need some parent objects: the Tissue annotations
• Duplicate the image with the Tissue annotations generated by the thresholder

Ensure Also duplicate data is checked!

• Detection can be computationally intensive, so best to start with a small region
• Draw a small rectangle ROI (500 µm x 500 µm), ensure it’s selected

Detecting cells

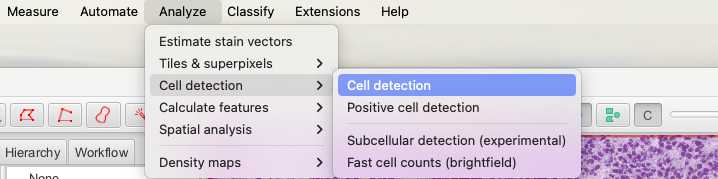

Analyze ‣ Cell detection ‣ Cell detection

Note

Positive cell detection allows setting additional intensity thresholds for scoring (e.g. DAB)

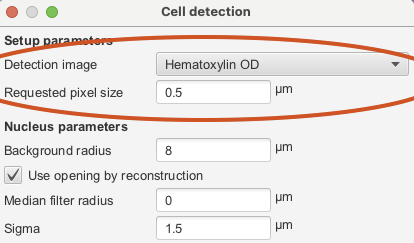

Cell detection dialog (top)

Cell detection parameters: setup

Defaults are frequently pretty good!

• Detection image: the channel where nuclei are most apparent, typically Hematoxylin OD, but OD Sum can be useful for H-DAB

Use B&C dialog to take a look!

• Requested pixel size: the resolution of the image used for the processing, enter 0 for native (full) resolution. Trade-off of speed vs. detail, 0.5 or 1 frequently good.

Cell detection parameters: nucleus

• Background radius: radius of area used for background subtraction, typically want it to be larger than the size of nuclei/clusters or set to 0 to disable
• Opening by reconstruction: turn off if background isn’t homogenous and you see tiling artifacts
• Median filter radius: radius of median filter (smoothing), higher values will tend to reduce fragmentation, 0 to disable
• Sigma: radius of gaussian filter (smoothing), higher values will tend to reduce fragmentation

Cell detection dialog (middle)

Cell detection parameters: nucleus, intensity

• Minimum area: area of smallest nuclei
• Maximum area: area of largest nuclei
• Threshold: minimum signal of nuclei (relative to background)
• Max background intensity: if background subtraction was performed, can have regions ignored (e.g. tissue fold or staining artifact)
• Split by shape: uses roundness to split clusters/clumps, generally want this ticked

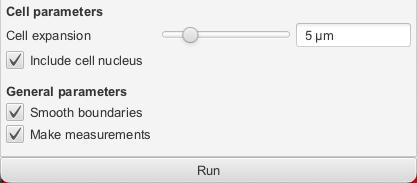

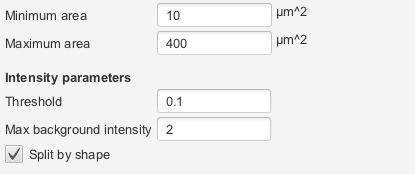

Cell detection dialog (bottom)

Cell detection parameters: cell, general

• Cell expansion: how much to expand nuclei by to get cell borders
  • can make it small to get peri-nuclear
• Include nucleus: to get nuclei as ROI ensure this is ticked
• Smooth boundaries: smooths based on resolution, reduces memory usage, generally want it ticked
• Make measurements: want this ticked to get measurements for the generated Detections

Cell detection exercise

• Using your rectangular Annotation, test out the cell detection parameters, by re-running cell detection with different parameters e.g.
  • Requested pixel size
  • Median filter radius
  • Sigma

Tip

• You can see the number of counted cells in the Analysis pane Annotation tab
• Press D to toggle showing Detections or F to toggle their Fill

Running cell detection on our slices

Depending on the parameters and power of your computer this can take a few minutes!

• Delete the rectangular Annotation and don’t keep descendants (the test Detections)
• Select the Annotation of the slice you want to detect (or select all 4)
• Click Run again if you have the Cell detection dialog open

Cell detection parameters are not saved. If you closed the dialog your settings are lost, but can be recovered in the Analysis pane Workflow tab

Using the Workflows tab

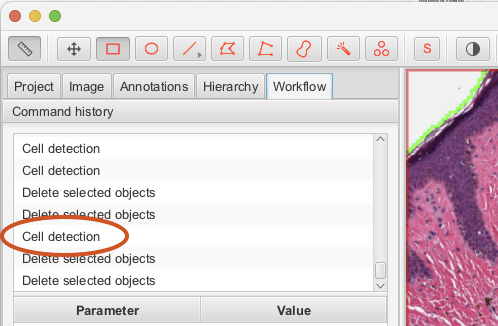

Double click the Workflow step you want to re-run!

Using the Workflows tab

• Workflow steps are saved for each image individually
• Can create scripts from Workflows to easily repeat/reapply an analysis

Use Create workflow button to remove any spurious steps prior to Create script

• Can also copy Workflow steps individually using right-click Copy command to paste into a script

Detection measurements

• Can see measurements in the Measurements table (Show detection measurements)
  • More export options: Measure ‣ Export measurements
• Can also visualize using “heat” maps of any Detection measurements: Measure ‣ Show measurements maps
  • can be informative for Object classification

Smoothed measurements take into account local area of each cell and can be even more useful

Object classification in QuPath

Object classification

• Both annotations and detections can be classified into classes using a ML classifier, like pixels
• Object classifiers are trained using manual annotations of 2 or more Classes
  • Area-based Annotations (e.g. brush) or Points are best

Important

• Classification requires measurements!
• The same measurements must be present for both training and inference Objects

Training an Object classifier

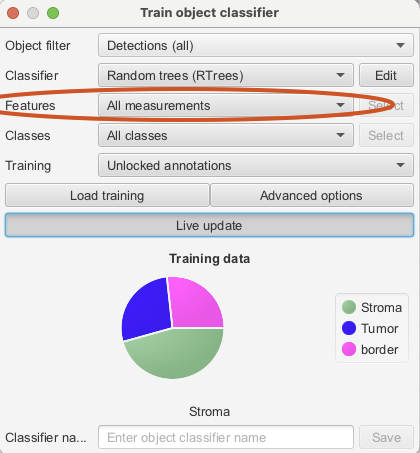

Classify ‣ Object classification ‣ Train object classifier

Training an Object classifier

• Similar to training the Pixel classifier, in terms of RTrees vs. ANN_MLP
  • Can log variable importance for RTrees
• Features: choose Selected features and click Select to reduce feature space
• Classes: choose Selected classes and click Select to train on selected Classes only

Live update applies the classifier

• To clear the classifications use Classify ‣ Object classification ‣ Reset detection classifications

Object classifier exercise

This only makes sense if you ran Cell detection on a tissue slice

• Use the brush tool to annotate Detections corresponding to three classes:
  • border: the dark purple/brown area at the edge
  • Tumor: the islands of dense hematoxylin staining
  • Stroma: other areas of the slice
• Test the effect of the Object classification training parameters

Press D to toggle showing Detections or F to toggle their Fill

Additional Object classification features

• Add intensity-based sub-classification (e.g. for DAB): Classify ‣ Object classification ‣ Set cell intensity classifications
• Use density maps to visualize detections: Analyze ‣ Density maps ‣ Create density map
  • these can be converted into Annotations (ROI)
